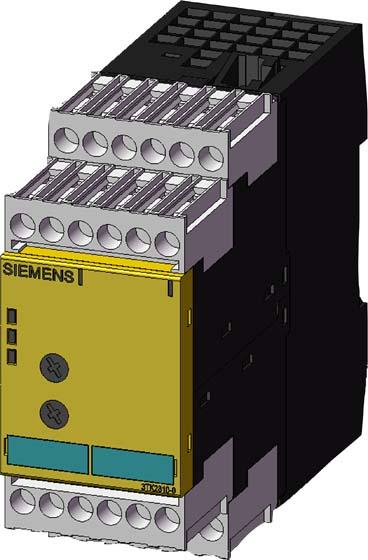

Siemens Indus.Sector safety relay 3TK2810-0BA01

Siemens digital industrial safety relay 3TK2810-0BA01

Manufacturer: Siemens Digital Industries
Designation: Safety relay standstill monitor
Type: 3TK2810-0BA01
Version: Other

Suitable for monitoring position switches: No
Suitable for monitoring E-STOP circuits: No
Suitable for monitoring valves: No
Suitable for monitoring optoelectronic protective devices: No
Suitable for monitoring tactile sensors: No
Suitable for monitoring magnetic switches: No
Suitable for monitoring proximity switches: No

Electrical connection design: Screw connection
Mounting rail installation possible: No
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
With removable terminals: Yes
Evaluation of inputs: Other
With start input: No
With muting function: No
With feedback loop: Yes
Release delay: 0.2 to 6 s
Number of outputs, signalling function, non-delayed, semiconductor: 2
Stop category to IEC 60204: 0
Performance level to EN ISO 13849-1: Level e
SIL to IEC 61508: 3
With approval for BG BIA: Yes
With approval to UL: Yes

Width: 45 mm
Height: 138.5 mm
Depth: 120 mm
With TÜV approval: Yes

Siemens digital industrial safety relay 3TK2810-0BA01 is designed for safety-related standstill monitoring with a DC 24 V supply. It features a screw connection and provides undelayed and delayed outputs. The device is suitable for safe standstill monitoring of motors and can be used flexibly with various motors and frequency inverters. It includes an adjustable standstill delay and does not require additional sensors, making it a cost-effective solution. The relay is available with different voltages and connection types, and accessories such as labeling plates enhance usability.
