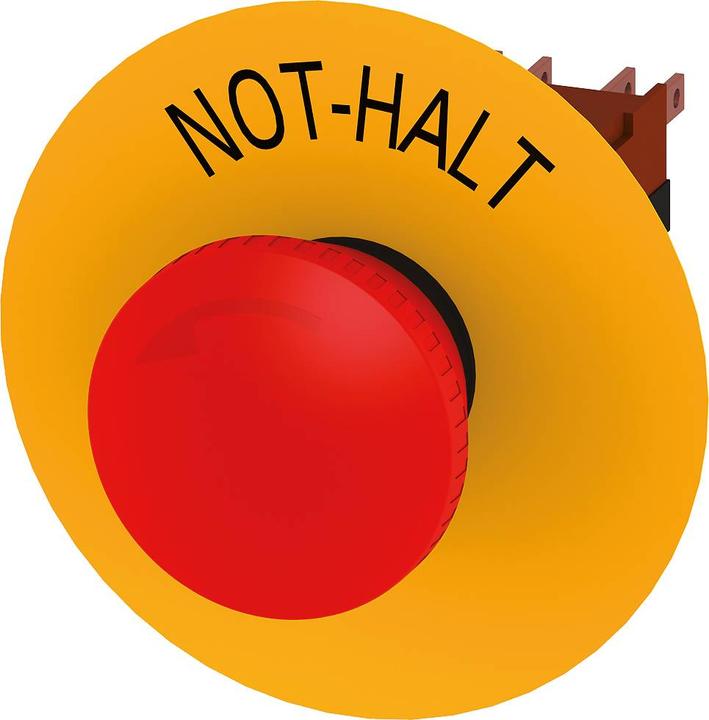

Siemens Emergency stop push-button

Siemens Digital Industry Complete Device 3SB2203-1AC01

Manufacturer: Siemens Digital Industry
Description: Complete Emergency Stop Push Button
Type: 3SB2203-1AC01
Number of Command Positions: 1
Button Design: Mushroom
Button Color: Red
Lens Shape: Round
Hole Diameter: 16 mm
Opening Width: 28.5 mm
Opening Height: 21 mm
Suitable for Lighting: No
Latching Switching Function: No
Push Button: No
Number of Contacts as Normally Open: 1
Electrical Connection Type: Flat Plug Connection
With Front Ring: No
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Class (IP): IP65

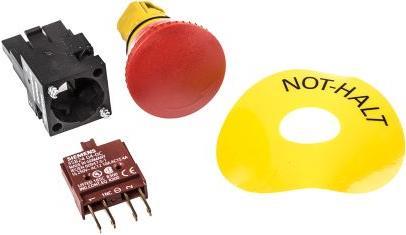

Additional Details: Emergency Stop Push Button, 16 mm, round, plastic, red, latching, with rotary release, according to ISO 13850, 1NO, with yellow backing plate, Emergency Stop. Emergency Stop Push Button SIRIUS 3SB2 according to DIN EN ISO 13850 for controlling safety-related applications. The 3SB2 push buttons and indicator lights are modular, field-proven, and suitable for industrial use. Due to their compact design, they are particularly suitable for small control panels. They are highly functional, extremely robust, and comply with the standards IEC/EN 60947-5-1 and 60947-5-5. They can be installed without special tools and in high packing density. Note: Complete device, delivery includes holder and switching element(s). 3SB2 - space-saving, field-proven, and suitable for industrial use!
EAN: 4011209028128.
