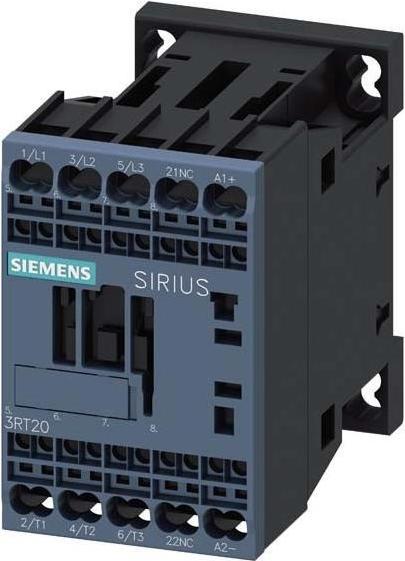

Siemens Coup Relay AC-3 3kW/400V 24V 3P S00

Ratings
Delivered between Thu, 31.7. and Mon, 18.8.
5 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

FLC motor power = 6.1 A
Control voltage = 24 V dc
Rated contact current = 18 A
Contact configuration = 3P
Range = Sirius Innovation
Nominal contact voltage = 690 V ac
Mounting type = DIN rail mounting
Series = 3RT2
Contact configuration = 3 NO contacts
Number of auxiliary contacts = 1
power = 0,4 W
Connection type = spring force
width = 73mm
Operating temperature range = -25 → +60 °C

CE, UL, CSA, CCC. Screw terminals can only be used with overload relays for screw terminals and spring terminals can only be used with overload relays for spring terminals. Contactors - Series 3RT2. The 3RT2 contactors are weatherproof and suitable and tested for worldwide use, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW Size S0, up to 18.5 kW Size S2, up to 37 kW Screw terminal / spring terminal Pulse voltage resistance 6 kV Insulation voltage 690 V Active power loss of only 4 W Designation K according to DIN 40719 (expandable to IEC 204-2) and IEC 750; Q according to DIN EN 61346-2.

Key specifications

input voltage
24 V
Output voltage
24 V
Output current type
AC
Electric current output
18 A
Relay type
Power contactor
Item number
9716356

General information

Manufacturer
Siemens
Category
Relays
Manufacturer no.
3RT2015-2HB42
Release date
24.9.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
input voltage
24 V
Output voltage
24 V
Electric current output
18 A
Output current type
AC
Switching function
Normally open
Number of openers
1 x
Number of closers
3 x
Number of poles
3 x
Max. Switching capacity
3 kW
Manufacturer Type
3RT2015-2HB42

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution
