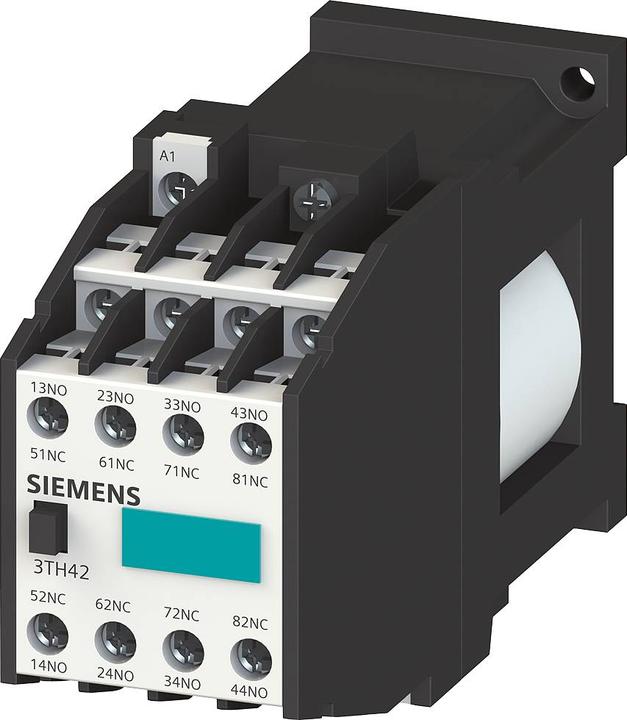

Siemens Contactor relay 62E, 6NO+2NC, 24VDC 3TH4262-0BB

Siemens Dig.Industr. Auxiliary Relay 3TH4262-0BB4

Manufacturer: Siemens Dig.Industr.
Designation: Auxiliary Relay 62E, 6NO+2NC, 24VDC
Type: 3TH4262-0BB4
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 24 V
Type of voltage for actuation: DC
Rated operational current Ie, 400 V: 6 A
Connection type for auxiliary circuit: Screw connection
Interface: no
Number of auxiliary contacts as normally open: 2
Number of auxiliary contacts as normally closed: 6
With LED indication: no
Suitable for manual operation: no

Siemens Dig.Industr. Auxiliary Relay 3TH4262-0BB4: further details
Auxiliary relay, 62E, DIN EN 50011, 6 NO + 2 NC, screw connection, DC actuation, DC 24V.
The 3TH4 auxiliary relays are used for switching control signals in the control circuit. The 3TH4 auxiliary relays have standardized connection designations and a reliable connection technology. Through output multiplication, simultaneous switching of up to 10 auxiliary circuits is possible. The contacts are designed with forced guidance for safety applications and are also available as SUVA variants. The devices are climate-resistant, have high contact reliability, and are suitable for worldwide use due to appropriate approvals (e.g., IEC and UL/CSA). The 3TH4 auxiliary relays are available in AC or DC actuation in various versions with 8 or 10 poles. Accessories include surge protectors, timers, and coupling elements.
EAN: 4011209048478.
