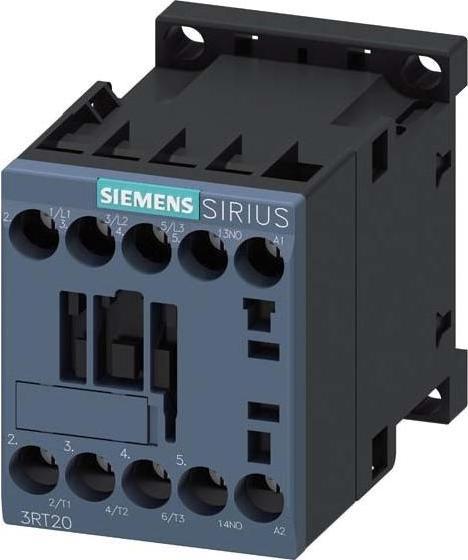

Siemens Contactor AC-3 4kW/400V 1NO 48V 3P S00

Range = Sirius Innovation
Series = 3RT2
Number of poles = 3
Nominal contact current = 9 A
Nominal contact voltage = 690 V ac
Contact number and position = 3 pole normally open contact
Contact configuration = 3 NO contacts
Number of auxiliary contacts = 1
Power = 4 kW (AC3)
Connection type = screw mounting
width = 73mm
Operating temperature max = +60°C

CE, UL, CSA, CCC. Screw terminals can be used only with overload relays for screw terminals and spring terminals can be used only with overload relays for spring terminals. Contactors - 3RT2 series. Contactors 3RT2 are weatherproof and suitable and tested for worldwide use, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW Size S0, up to 18.5 kW Size S2, up to 37 kW Screw terminal / spring terminal Impulse withstand voltage 6 kV Insulation voltage 690 V Active power loss of only 4 W Designation K according to DIN 40719 (expandable to IEC 204-2) and IEC 750; Q according to DIN EN 61346-2.
