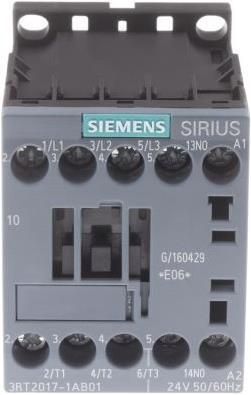

Siemens Contactor 5,5kW 24Vac size 00

Ratings
tonight with flash delivery
to check if flash delivery is available to you.

Product details

Range: Sirius Innovation
Series: 3RT2
Number of poles: 3
Coil voltage: 24 V AC
Nominal contact current: 12 A
Rated contact voltage: 400 V AC
Contact configuration: 3 NO contacts
Number of auxiliary contacts: 1
Power: 5.5 kW (AC3)
Connection type: Screw mounting
Width: 45 mm
Operating temperature max: +60°C

CE, UL, CSA, CCC. Screw terminals can be used only with overload relays for screw terminals, and spring terminals can be used only with overload relays for spring terminals. Contactors - 3RT2 series. Contactors 3RT2 are weatherproof and suitable and tested for worldwide use, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW; Size S0, up to 18.5 kW; Size S2, up to 37 kW. Screw terminal / spring terminal. Impulse withstand voltage 6 kV. Insulation voltage 690 V. Active power loss of only 4 W. Designation K according to DIN 40719 (expandable to IEC 204-2) and IEC 750; Q according to DIN EN 61346-2.

Key specifications

input voltage
690 V
Scope of delivery
400V 1S 24VAC, Contactor 5.5kW
Output voltage
24 V
Output current type
AC
Electric current output
12 A
Relay type
Switching relay
Item number
9732064

General information

Manufacturer
Siemens
Category
Relays
Manufacturer no.
3RT2017-1AB01
Release date
24.9.2018

Relay properties

Relay type
Switching relay
input voltage
690 V
Output voltage
24 V
Electric current output
12 A
Output current type
AC
Manufacturer Type
3rt2017-1ab01

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
400V 1S 24VAC, Contactor 5.5kW

Product dimensions

Length
80 mm
Width
73 mm
Height
58 mm
Weight
232 g

Package dimensions

Length
8 cm
Width
8 cm
Height
5 cm
Weight
220 g
