Range: Sirius Innovation
Series: 3RT2
Number of poles: 3
Coil voltage: 230 V AC
Nominal contact current: 7 A
Rated contact voltage: 400 V AC
Contact configuration: 3 NO contacts
Number of auxiliary contacts: 1
Power: 3 kW (AC3)
Connection type: Screw mounting

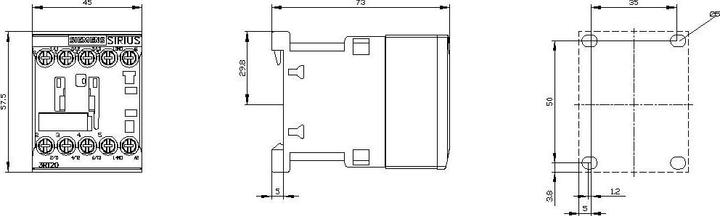

Length: 57.5 mm
Operating temperature max: +60°C
CE, UL, CSA, CCC. Screw terminals can be used only with overload relays for screw terminals, and spring terminals can be used only with overload relays for spring terminals. Contactors - 3RT2 series. Contactors 3RT2 are weatherproof and suitable for worldwide use, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW; Size S0, up to 18.5 kW; Size S2, up to 37 kW. Screw terminal / spring terminal. Impulse withstand voltage: 6 kV. Insulation voltage: 690 V. Active power loss of only 4 W. Designation K according to DIN 40719 (expandable to IEC 204-2) and IEC 750; Q according to DIN EN 61346-2.
input voltage | 230 V |
Output voltage | 230 V |
Output current type | AC/DC |
Electric current output | 7 A |
Relay type | Switching relay |
Item number | 9732023 |
Manufacturer | Siemens |
Category | Relays |
Manufacturer no. | 3RT2015-1AP01 |
Release date | 24.9.2018 |
Relay type | Switching relay |
input voltage | 230 V |
Output voltage | 230 V |
Electric current output | 7 A |
Output current type | AC/DC |
Switching function | Normally open |
Number of closers | 3 x |
Number of poles | 3 x |
Max. Switching capacity | 3 kW |
Manufacturer Type | 3rt2015-1ap01 |
Smart Home | Not compatible |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 73 mm |
Width | 45 mm |
Height | 58 mm |
Weight | 230 g |
