Siemens Case 22mm push button,metal

Mounting type = SMD
Reset type = rotary release
Contact configuration = 2 NC contacts
Protection class = IP67
Head shape = Mushroom
Illuminated = No
head diameter = 32mm
width = 85mm

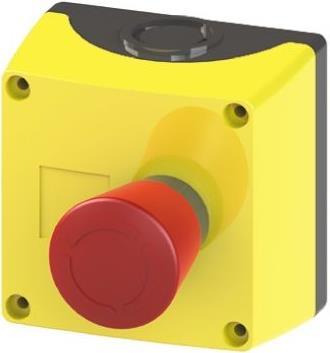

Control station with emergency stop switch - metal. The 3SB3 series is suitable for use in narrow operating areas. These control emergency stop buttons with a nominal diameter of 22 mm are available: In square version for a 26 mm ;font face="symbol">´ ;/font> 26 mm cut-out, plastic version In round version, plastic and metal versions The metal version of the 3SB3 series has received several product design awards. Its high quality offers protection according to IP67 and NEMA 4: Protection class IP67 (rated ;quot;dustproof ;quot; and protected against immersion) The NEMA protection class for this element is 4X. This means that it falls under protection class NEMA 4 (protection against dust), but must offer additional protection against corrosion. Only housings made of corrosion resistant materials such as stainless steel and aluminum are qualified for NEMA 4X protection. These emergency stop control stations are made of yellow metal with metal actuators and indicators.
