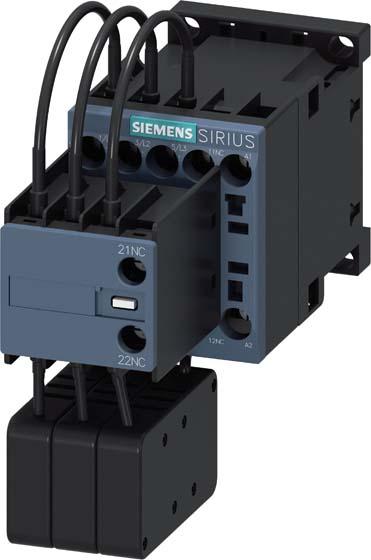

Siemens Capacitor contactor 24V AC 12.5kvar 3S 3RT2617-1AB05

Siemens digital industrial contactor 3RT2617-1AB05

Manufacturer: Siemens Digital Industries
Designation: Contactor 2Ö
Type: 3RT2617-1AB05
Voltage type for actuation: AC
Number of auxiliary contacts as NC contacts: 2
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3
Rated reactive power at 400 V, 50 Hz: 12.5 kvar

Siemens digital industrial contactor 3RT2617-1AB05: more details
Capacitor contactor, AC-6b 12.5 kVAr, / 400 V 2 Ö, AC 24 V, 50/60 Hz, 3-pole, size S00, screw connection.

Capacitor contactor SIRIUS 3RT26 for switching capacitive loads, e.g., capacitor banks. The 3RT26 capacitor contactors are part of the SIRIUS modular system with optimally matched products. They offer conventional drives for AC and DC actuation as well as electronic drives with AC/DC actuation. They impress with their high performance, compact design, and high contact reliability. They can be combined with other components in the load feeder in various ways. Many of the device combinations are factory tested. Integrated auxiliary switches reduce the complexity of your setup. The connections on the front enable simple wiring.

The 3RT26 capacitor contactors are climate-proof and approved worldwide (e.g., IEC and UL/CSA) and are available in various sizes and a wide power range with AC and DC actuation using screw connection technology. The comprehensive range of accessories is standardized for all sizes. The 3RT26 capacitor contactors replace the 3RT16 capacitor contactors.

Simple, efficient, always up-to-date - the SIRIUS modular system.
EAN: 4011209948358.
