Siemens Auxiliary switch for contactor

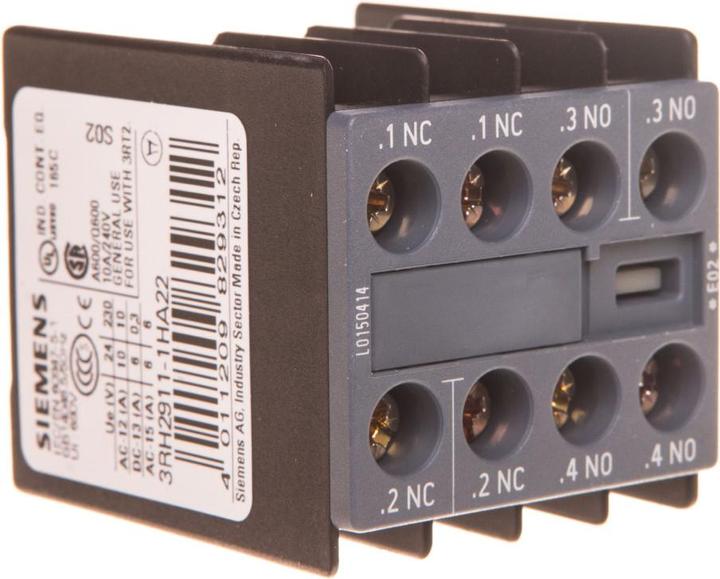

Siemens Dig.Industr. Auxiliary Switch Block 3RH2911-1HA22

Manufacturer: Siemens Dig.Industr.
Designation: Auxiliary switch block 2S+2Ö, S00+S0
Type: 3RH2911-1HA22
Number of contacts as normally closed: 2
Number of contacts as normally open: 2
Rated operational current Ie at AC-15, 230 V: 6 A
Type of electrical connection: Screw connection
Design: Plug-in
Mounting type: Other
Base: Without

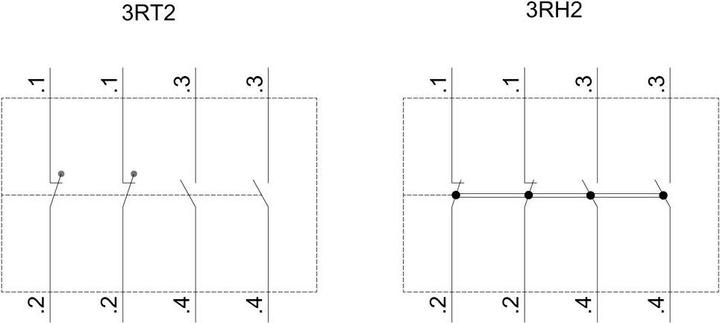

The auxiliary switch block 3RH2911-1HA22 provides additional details: Auxiliary switch, front-mounted, 2 S + 2 Ö, .1/.2, .1/.2, .3/.4, .3/.4, circuit: 1 Ö, 1 Ö, 1 S, 1 S, screw connection, for contactors 3RT2 and auxiliary contactors 3RH2. The SIRIUS 3RH29 auxiliary switches expand the auxiliary contacts in the control circuit. The front-mounted auxiliary switches 3RH29 can be mounted without tools, independent of size, on contactors 3RT2 and auxiliary contactors 3RH2. The auxiliary switches 3RH19/3RH29 are available as front-mounted or side-mounted variants, with up to four instant switching normally closed or up to two early switching normally open contacts. The auxiliary switches can be designed as forcibly guided contact elements in auxiliary contactors 3RH or as mirror contacts in power contactors 3RT. They are consistently available with screw connection and spring-loaded connection. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209829312.
