Siemens Auxiliary switch block 2S+2Ö,Bgr.S00,S0 3RH2911

Siemens Digital Industry Auxiliary Switch Block 3RH2911-2GA22

Manufacturer: Siemens Digital Industry
Designation: Auxiliary Switch Block 2S+2Ö, Bgr.S00, S0
Type: 3RH2911-2GA22
Number of contacts as normally closed: 2
Number of contacts as normally open: 2
Rated operational current Ie at AC-15, 230 V: 6 A
Type of electrical connection: Spring clamp connection
Design: Plug-on
Mounting type: Other
Base: Without

Additional details:

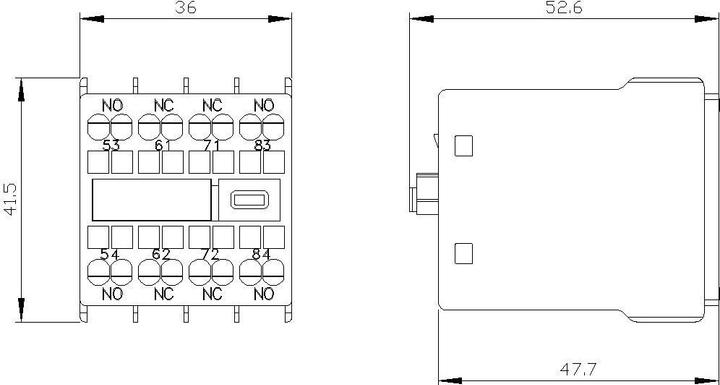

Auxiliary switch, front-mounted, 2 S + 2 Ö, 53/54, 61/62, 71/72, 83/84, circuit: 1 S, 1 Ö, 1 Ö, 1 S, spring clamp connection, physically coded, can only be combined with auxiliary relays 3RH2140 and 3RH2440 (according to EN 50011). SIRIUS 3RH29 auxiliary switch for expanding auxiliary contacts in the control circuit. The front-mounted auxiliary switches 3RH29 can be installed without tools, regardless of size, on the contactors 3RT2 and auxiliary relays 3RH2. The auxiliary switches 3RH19/3RH29 are available as front-mounted or side-mounted variants, with up to four instant switching normally closed or up to two pre-energized normally open contacts. The auxiliary switches can be designed as forcibly guided contact elements in auxiliary relays 3RH or as mirror contacts in power relays 3RT. They are available with screw connection and spring clamp connection. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209829473.
