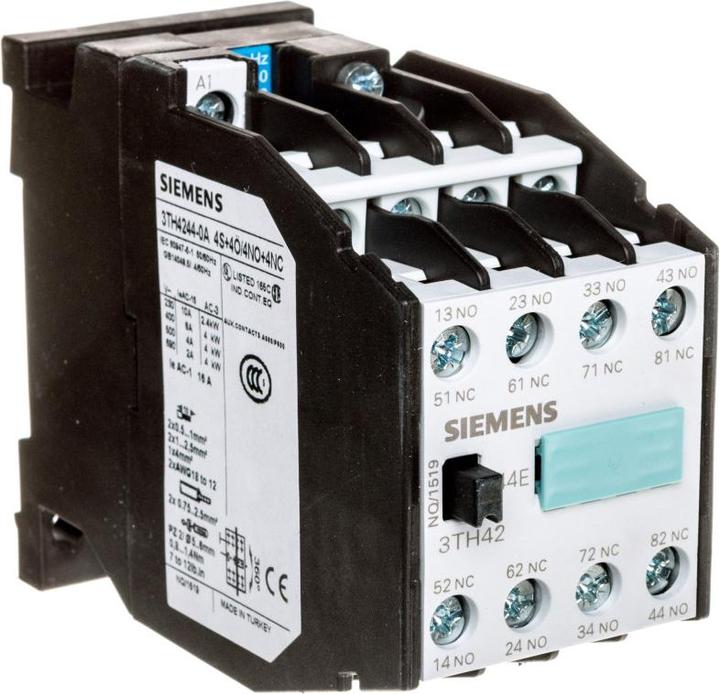

Siemens Auxiliary contactor 44E, 4NO+4NC, AC230V 3TH4244-0A

Siemens Dig.Industr. Auxiliary Relay 3TH4244-0AP0

Manufacturer: Siemens Dig.Industr.
Designation: Auxiliary Relay 44E, 4NO+4NC, AC230V
Type: 3TH4244-0AP0
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 277 V
Rated control supply voltage Us at DC: 0 V
Type of voltage for actuation: AC
Rated operational current Ie, 400 V: 6 A
Connection type for auxiliary circuit: Screw connection
Interface: no
Number of auxiliary contacts as normally open: 4
Number of auxiliary contacts as normally closed: 4
With LED indication: no
Suitable for manual operation: no

Further details: Auxiliary relay, 44E, DIN EN 50011, 4 NO + 4 NC, screw connection, AC actuation AC 230/220V 50Hz, 276/264V 60Hz.

The 3TH4 auxiliary relay is used for switching control signals in the control circuit. The 3TH4 auxiliary relays have standardized connection designations and a reliable connection technology. Due to output multiplication, it is possible to simultaneously switch up to 10 auxiliary circuits. The contacts are designed with forced guidance for safety applications and are also available as SUVA variants. The devices are climate-resistant, have high contact reliability, and are suitable for worldwide use with appropriate approvals (e.g., IEC and UL/CSA). The 3TH4 auxiliary relays are available in AC or DC actuation in various versions with 8 or 10 poles. Accessories such as surge protectors, timers, and coupling elements are also available.

EAN: 4011209047914.
