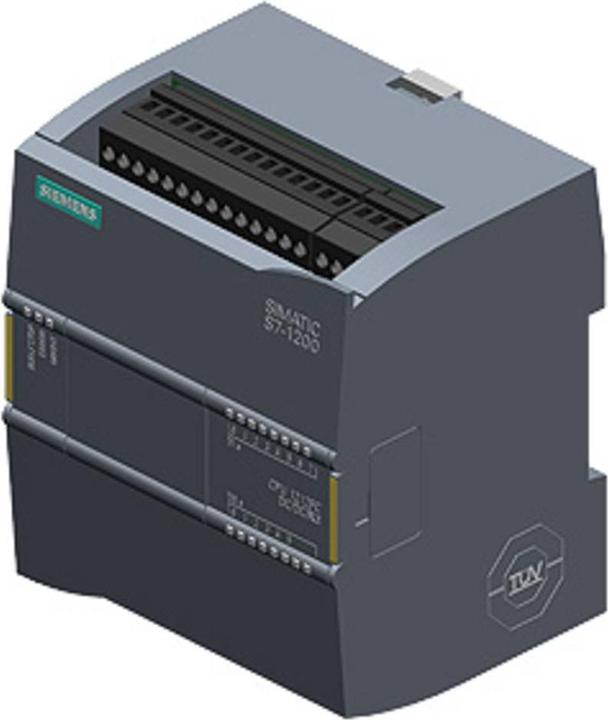

Siemens 6ES7212-1HF40-0XB0

SIMATIC S7-1200, CPU 1212FC, compact CPU, DC/DC/Relay, onboard I/O: 8 DI DC 24V, 6 DO Relay 2A, 2 AI 0-10V DC, power supply: DC 20.4-28.8V DC, program/data memory 150 KB. The SIMATIC S7-1200 Basic Controller is flexible due to its diverse communication options. Basic Controllers are the first choice for flexibly and efficiently solving automation tasks in the lower and medium power range. The central modules are scaled in performance, available for different input voltages, and come with transistor or relay outputs. Safety variants are also available. In addition to the already integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with various signal and communication modules to precisely meet your requirements. HMI devices can also be connected via the integrated Ethernet interface. The CPU memory can be expanded using a memory card, and the PLC is programmed with the STEP 7 Basic software in the TIA Portal. The micro PLC offers various networking options through different communication standards via integrated functions (PROFINET, Modbus, etc.) or additional modules (IO-Link, AS-i, etc.), providing maximum flexibility in network and topology setup. The application areas for the S7-1200 are very diverse due to its compact design, ranging from simple packaging machines to heating systems and even serving as a subordinate system in large plants. Compact design, modular structure, and integrated I/Os help save space in the control cabinet. The project planning software STEP 7 is integrated into the TIA Portal, allowing access to a common data repository, a unified operating concept, and consistent communication services for all components of a system. This results in less project planning effort and faster commissioning.
