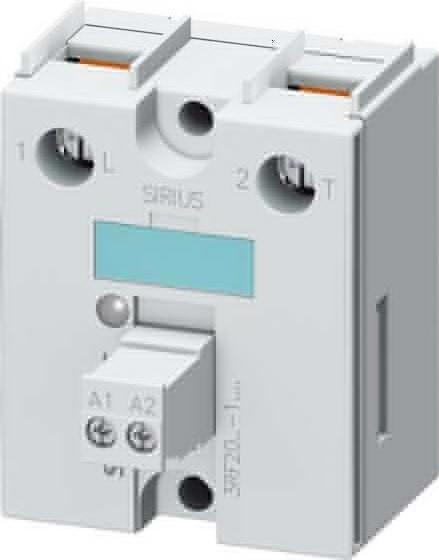

Siemens 3RF2070-1AA06

Siemens Dig.Industr. solid state relay 3RF2070-1AA06 Manufacturer :Siemens Dig.Industr. Designation :Solid state relay 45mm, 70A 48-600V Type :3RF2070-1AA06 Rated control supply voltage Us at DC :15..24 V Type of voltage for actuation :DC Operating voltage :48..600 V Rated operational current Ie at AC-1 :70 A Rated operational current Ie at AC-51 :50 A Number of phases :1 Suitable for series installation :yes Siemens Dig.Industr. Solid-state relay 3RF2070-1AA06: further details Solid-state relay, 1-phase 3RF2 Construction width 45 mm, 70 A 48-600 V / DC 24 V Screw connection SIRIUS 3RF20 solid-state relay for switching resistive/inductive loads, e.g. radiators or valves. The devices switch wear-free and silently and are therefore ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardised 3RF29 function modules. The units are approved worldwide (e.g. IEC and UL/CSA).The solid-state relays are available as 1-phase units in two widths or as 3-phase units. They are available for different power ratings and rated operating voltages. Designed for AC or DC actuation, they are available with screw, spring-cage or ring terminal lug connections.In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.Simple, efficient, always up-to-date - the SIRIUS modular system. , EAN: 4011209575929.
