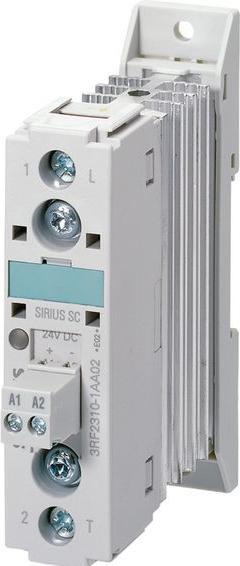

Siemens 1-phase solid-state contactor 3RF23 3RF2310-1AA45

Siemens Digital Industry Semiconductor Relay 3RF2310-1AA45

Manufacturer: Siemens Digital Industry
Designation: Semiconductor Relay 10.5 A 40 °C 48-600 V
Type: 3RF2310-1AA45
Rated control supply voltage Us at DC: 4-30 V
Voltage type for actuation: DC
Operating voltage: 48-600 V
Rated operational current Ie at AC-1: 10.5 A
Rated operational current Ie at AC-51: 10.5 A
Number of phases: 1
Suitable for rail mounting: yes

Additional details:
Single-phase semiconductor relay 3RF2 AC 51 / 10.5 A / 40 °C 48-600 V / DC 4-30 V
Screw connection
Blocking voltage 1200 V

SIRIUS 3RF23 semiconductor relay for switching resistive and inductive loads, e.g., heaters or valves in a filling system. The devices switch wear-free and silently, making them ideal for noise-sensitive areas such as offices or hospitals. They are also extremely reliable at high switching frequencies. With the heat sink already integrated, they can be directly installed in the control cabinet. The compact design saves space on the DIN rail. The semiconductor relays can also be easily expanded for various applications using the standardized function modules 3RF29 by simply snapping them on. The devices are globally approved, e.g., IEC and UL/CSA. The semiconductor relays are available as single-phase or three-phase devices and are offered for various power ratings and rated operating voltages. They are available for AC or DC actuation with screw, spring-loaded, or ring terminal connections. In addition to the function modules 3RF29, control plugs and terminal covers are also available as accessories. Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209652613.
