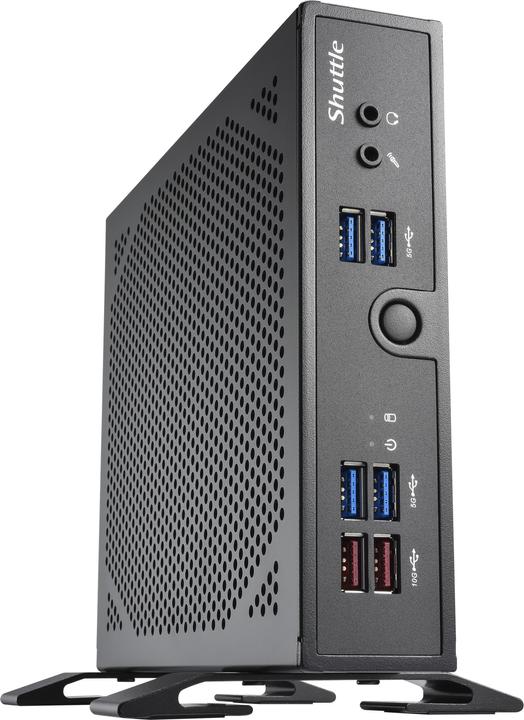

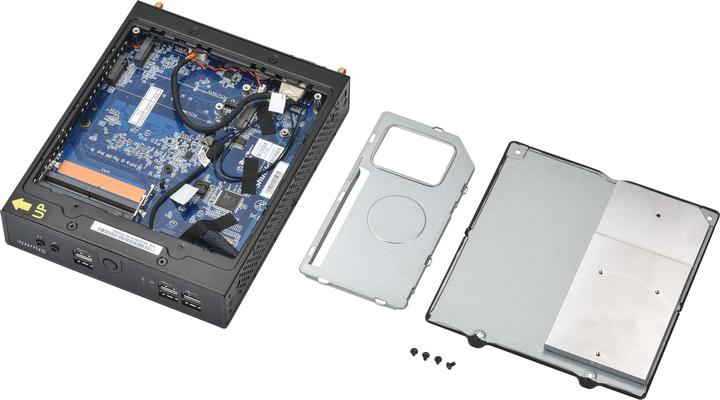

The DS50U series is a fanless slim PC with a sturdy 1.3-liter metal chassis and exceptional connectivity options. It supports two digital video outputs for UHD/4K displays and a traditional D-Sub/VGA port. The built-in Intel Gen 12/13 processor provides ample power for playing 2160p/60 videos. Installing the components is straightforward, as there is enough space inside for two DDR5 memory modules, a 2.5-inch drive, and two M.2-2280 SSD cards.
Number of processor cores | 10 -Core |
Graphics card model | Intel UHD Graphics |
Internal connection options | M.2 (3x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Memory type | DDR5 RAM |
USB ports | USB-A |
Item number | 43069933 |
Manufacturer | Shuttle |
Category | Barebones |
Manufacturer no. | DS50U7 |
Release date | 5.3.2024 |
Sales rank in Category Barebones | 48 of 589 |
May include power adapter | Yes |
Design | All-in-one |
Processor type | Intel Core i7-1355U |
Clock frequency | 5 GHz |
Number of processors | 1 x |
Number of processor cores | 10 -Core |
Number of threads | 12 |
Socket | LGA 1700 |
Max. turbo clock rate | 5 GHz |
Max. TDP | 15 W |
Processor properties | Onboard processor |
Memory type | DDR5 RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 96 GB |
Memory voltage | 1.10 V |
Graphics card model | Intel UHD Graphics |
Internal connection options | M.2 (3x) |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Data ports | PS/2 (2x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Max. port speed | 1000 Mbit/s |

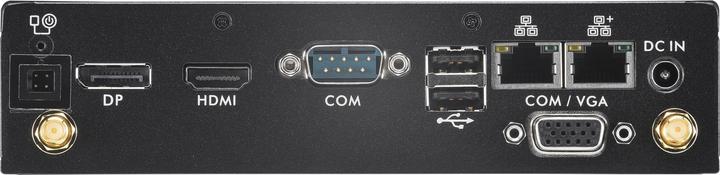

Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Audio outputs | Headphone jack 3.5mm (1x) |
Power | 90 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Weight | 1600 g |
Width | 200 mm |
Length | 165 mm |
Height | 39.50 mm |
Length | 26.70 cm |
Width | 26.10 cm |
Height | 14 cm |
Weight | 2.88 kg |
