XPC slim DH670V2
The robust 1.3-liter slim PC supports Intel Core processors with LGA1700 socket and four UHD displays.

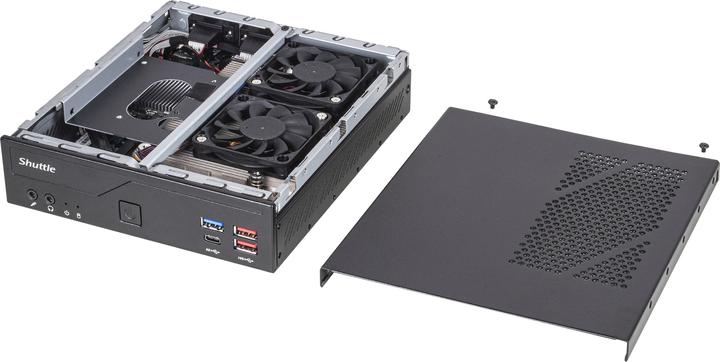

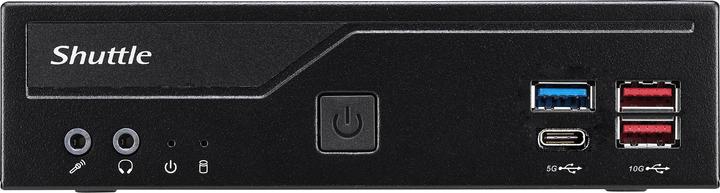

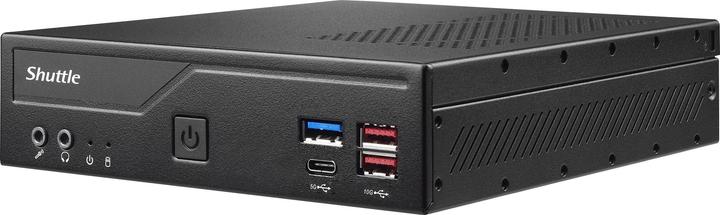

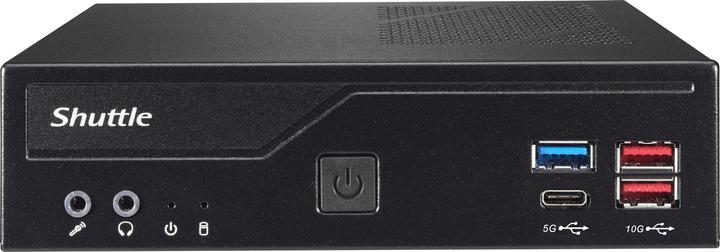

The Shuttle XPC slim Barebone DH670V2 with H670 chipset brings the performance of Intel's 12th, 13th, and 14th generation Core desktop processors (codenamed "Alder Lake-S" and "Raptor Lake-S" [Refresh]) into a compact 1.3-liter format. It supports the simultaneous operation of four Ultra HD displays via 2x HDMI and 2x DisplayPort. Dual Intel 2.5G networking, four USB 3.2 Gen 2 ports, and COM ports are also included. Its flat metal case with VESA mount, diverse connectivity options, and reliable operation at ambient temperatures of up to 50 °C make the DH670V2 ideal for professional applications such as digital signage, POS, POI, gaming machines, offices, healthcare, and industry. A BIOS update may be necessary for Intel Core Gen 14 (to be performed with a compatible processor).
Case
Power Supply
Graphics card model | Intel UHD Graphics |
Internal connection options | S-ATA III (2x) |
Network connections | RJ45 Gigabit Ethernet (2x) |

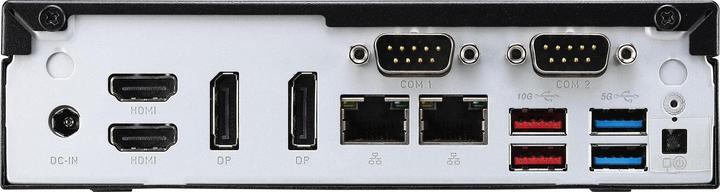

Video connections | DisplayPort (2x), HDMI (2x) |
Memory type | DDR4-RAM |
USB ports | USB-A, USB-C |
Item number | 37175158 |
Manufacturer | Shuttle |
Category | Barebones |
Manufacturer no. | DH670V2 |
Release date | 3.8.2023 |
Sales rank in Category Barebones | 45 of 586 |
May include power adapter | Yes |
Design | Small Form |
Processor type | Intel Core i5-12500T |

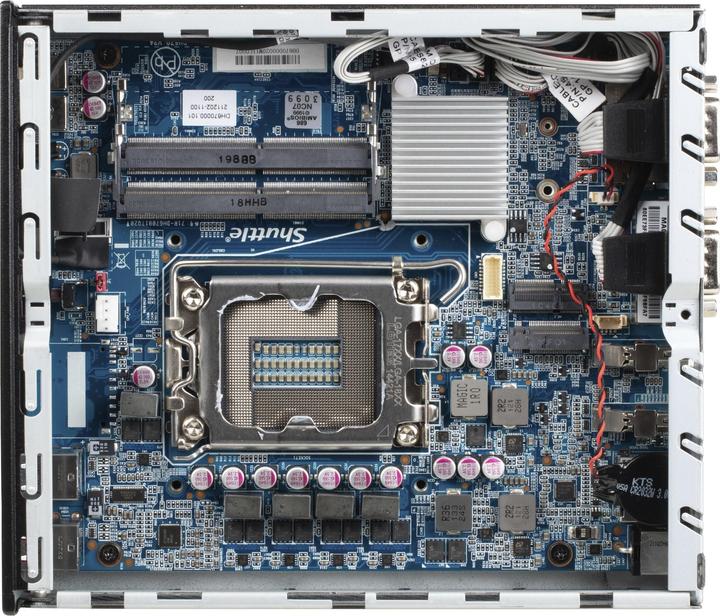

Socket | LGA 1700 |
Max. TDP | 65 W |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Memory voltage | 1.20 V |
Graphics card model | Intel UHD Graphics |
Max. connected monitors | 4 x |
Internal connection options | S-ATA III (2x) |
Data storage controller | Intel H670 |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.0 (3x), USB-A 3.1 Gen 1 (4x), USB-C 3.0 (1x) |
Network connections | RJ45 Gigabit Ethernet (2x) |
Max. port speed | 2.50 Mbit/s |
Connectivity | Ethernet |
Video connections | DisplayPort (2x), HDMI (2x) |
Audio outputs | 3.5mm jack (1x) |
Power | 120 W |
Fan diameter | 60 mm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power supply, Protective cap for the CPU socket, Sata Cables, Screws, Thermal grease, VESA bracket |
Weight | 1300 g |
Width | 190 mm |
Length | 165 mm |
Height | 43 mm |
Length | 26.40 cm |
Width | 26 cm |
Height | 13.70 cm |
Weight | 2.40 kg |
