Shuttle Barebone XPC slim XH610G2 LGA1700 2xSODIMM DDR5 2xM.2 2xHDMI 1xDP

XPC slim XH610G2
Flexible 4.7-Liter PC with PCIe Slot

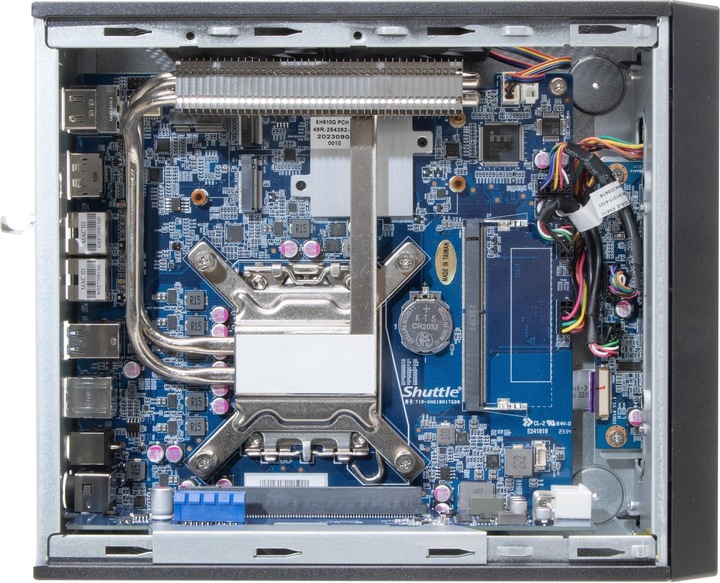

The Shuttle XPC slim Barebone XH610G2 is a 4.7-liter PC featuring two slots for PCI-Express cards. Together with an LGA1700 Intel Core desktop processor from the Intel Core Generation 12/13/14, this platform is perfectly suited for applications where performance, flexibility, and compact design are required. For example, a multi-port graphics card, a video capture card, or an I/O card can be installed to create a mini-PC for video wall presentations, graphic workstations, audio/video recording, surveillance, point of sale systems, as well as various network and industrial applications. Gaming is also possible.

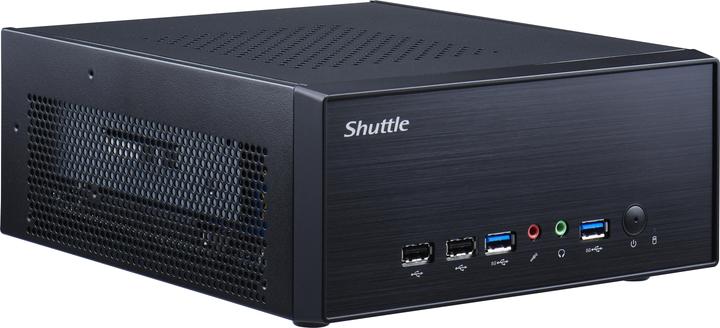

Case

• Flat X-case type, color: Black
• Dimensions: 25 x 20 x 9.5 cm (W x D x H), volume: approximately 4.7 liters
• Weight: 2.98 kg net, 3.49 kg gross
• Open front - no cover flaps for front panel connections
• Opening for Kensington Lock on the back of the device

Operating Position

• (1) horizontally on the stand feet
• (2) vertically with the included VESA mount

Power Supply

• External 180 W power supply (fanless)
• Input: 100-240 V AC, 50-60 Hz, max. 2.5 A
• Output: 19.5 V DC, max. 9.23 A, max. 180 W output power
• AC plug with protective contact, approximately 1.7 m long cable
• DC plug: 5.5 / 2.5 mm (outer/inner diameter)
• Dimensions: approximately 167 x 82 x 25.5 mm = 350 ml

Operating System

• This system is delivered without an operating system.
• It is compatible with Windows 10/11 (64-bit) and Linux (64-bit).

Processor Support

• Processor socket LGA1700
• Supports Intel Core i9 / i7 / i5 / i3, Pentium Gold, and Celeron processors
• Supports the following generations of Intel Core processors:

Gen 12 "Alder Lake-S"
Gen 13 "Raptor Lake-S"
Gen 14 "Raptor Lake-S Refresh"
Intel-7 technology (10 nm)

• Maximum supported processor thermal design power (TDP) = 65 W.
• Check if the processor used has integrated...
