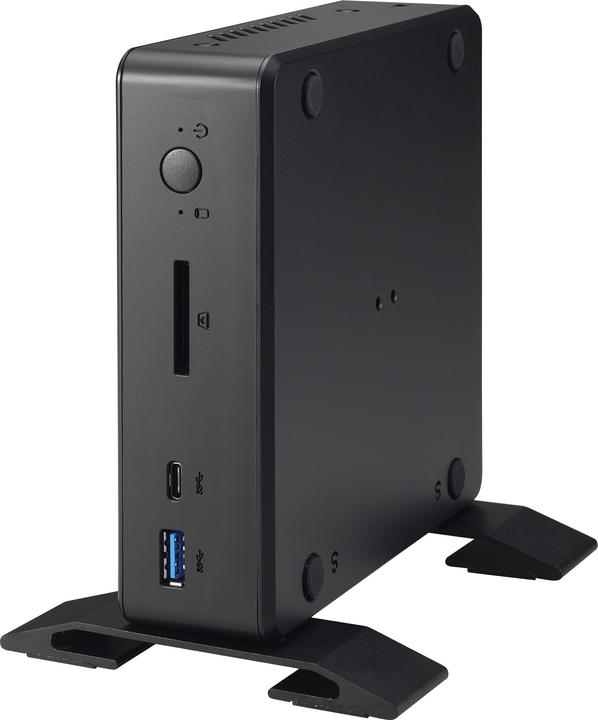

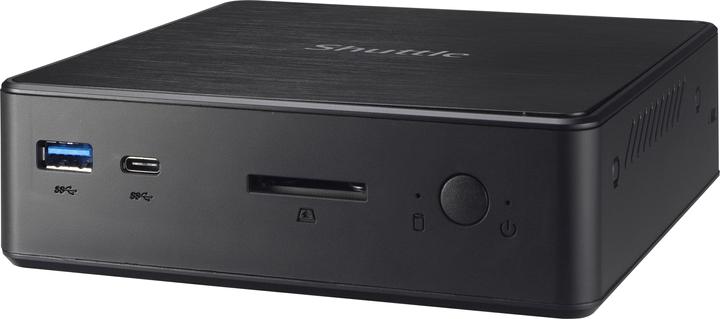

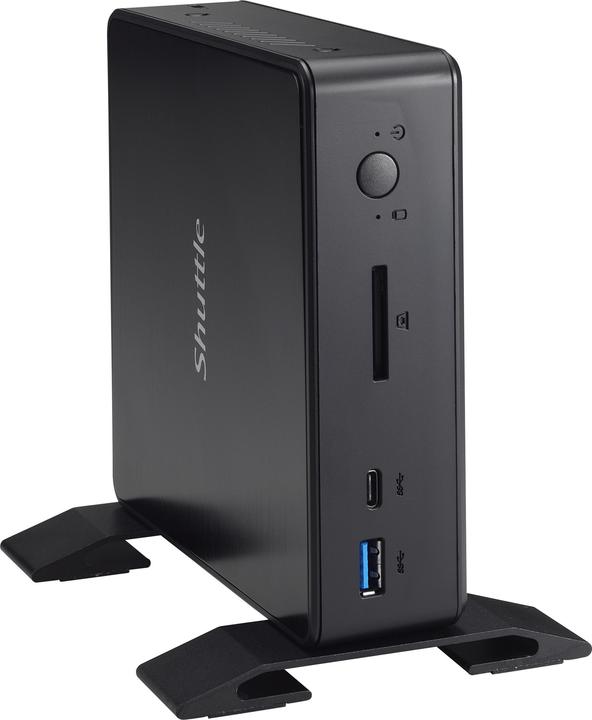

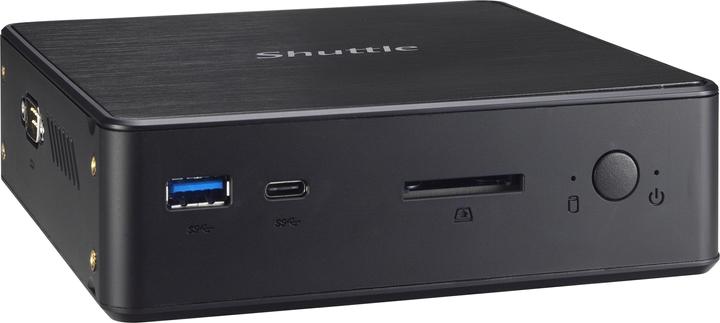

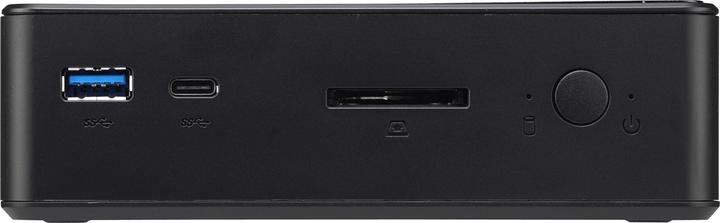

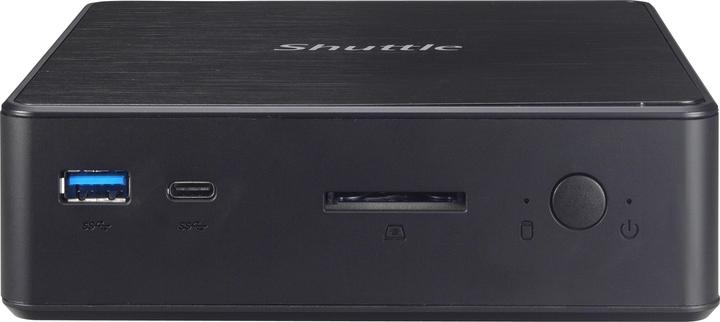

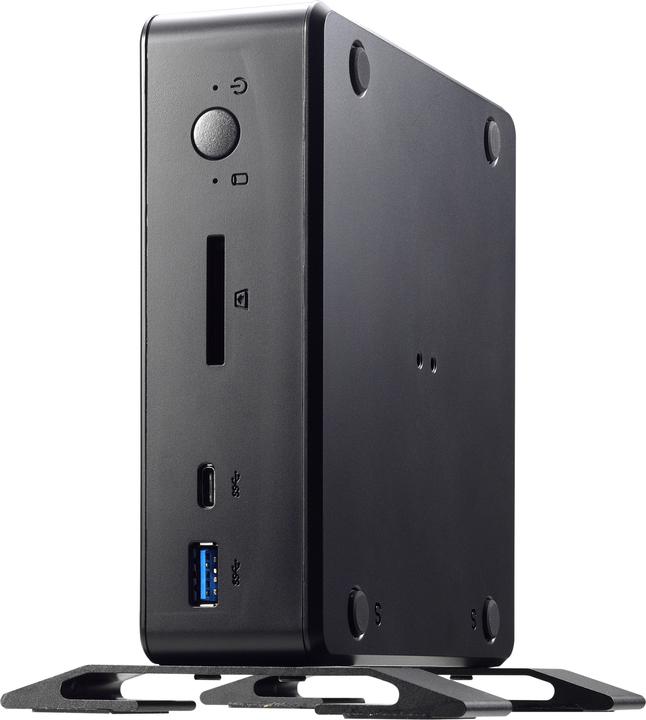

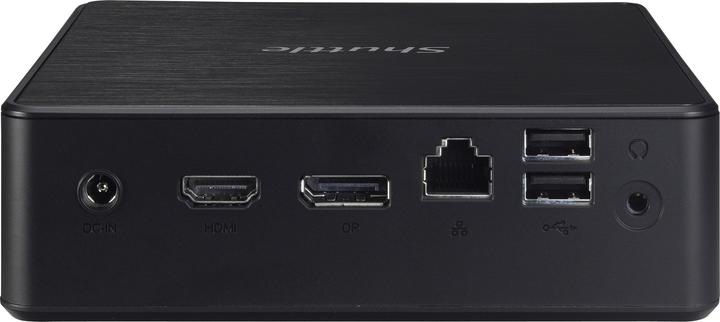

Shuttle Barebone XPC nano NC10U5

Intel Core i7-8565U
Ratings
BrandMore from Shuttle
Currently out of stock
Free shipping starting at 50.–

Product details

The Shuttle XPC nano NC10U5 is a compact barebone mini-PC designed for versatile applications. Equipped with an Intel Core i7-8565U processor, it delivers high performance for demanding tasks. The mini-PC supports up to 32 GB of DDR4 RAM and allows for the installation of HDDs or SSDs via a 2.5-inch bay as well as an M.2 slot. With integrated Intel UHD Graphics 620, it is capable of displaying high-resolution content. Connectivity is ensured through multiple ports such as HDMI, DisplayPort, and USB 3.2, while network connectivity is provided via Gigabit LAN and Wi-Fi standards like 802.11b/g/n. The Shuttle XPC nano NC10U5 is designed for 24/7 operation, making it ideal for use in business environments or as a media center.

  • Supports up to 32 GB of DDR4 RAM for high performance
  • Integrated Intel UHD Graphics 620 for impressive graphics display
  • Versatile connectivity options, including HDMI and DisplayPort
  • Suitable for 24/7 operation, ideal for business applications
  • Compact design for space-saving installations.

Key specifications

Graphics card model
UHD Graphics 620
Memory type
DDR4-RAM
Video connections
HDMI (1x)
Network connections
RJ45 (1x)
Internal connection options
S-ATA III (1x)
USB ports
USB-A
Number of processor cores
4 -Core
Item number
12534910

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
NC10U7 BLACK
Release date
16.1.2020

Barebone properties

Design
All-in-one

Processor

Processor type
Intel Core i7-8565U
Clock frequency
1.80 GHz
Number of processors
1x
Number of processor cores
4 -Core
Number of threads
8
Socket
BGA 1528
Max. turbo clock rate
4.60 GHz
Max. TDP
15 W

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
UHD Graphics 620
Max. connected monitors
2x

Internal connections

Internal connection options
S-ATA III (1x)
Data storage controller
Intel SoC
"Number of 5.25"" drive slots"
1x
Number of 3.5" drive slots (internal)
1x
Number of 3.5" drive slots (external)
1x
"Number of 2.5"" drive slots"
1x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)
Data ports
PS/2 (2x)

Network

Network connections
RJ45 (1x)
Max. port speed
150 Mbit/s

Wireless transmission

Connectivity
Ethernet
Wi-Fi standard
Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n

Video connections

Video connections
HDMI (1x)

Card reader properties

Memory card type
SD, SDHC, SDXC

Power supply properties

Power
65 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Barebone PC

Product dimensions

Weight
400 g
Width
142 mm
Length
142 mm
Height
42 mm

Package dimensions

Length
25.70 cm
Width
24.40 cm
Height
14 cm
Weight
1.44 kg
