Shuttle Barebone X50V6 Black Touchscr. AiO

Intel Celeron 3865U
Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

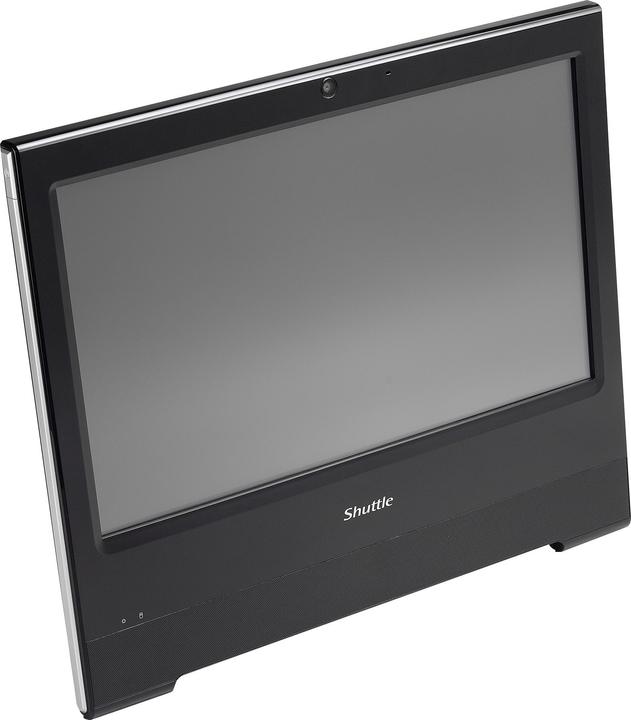

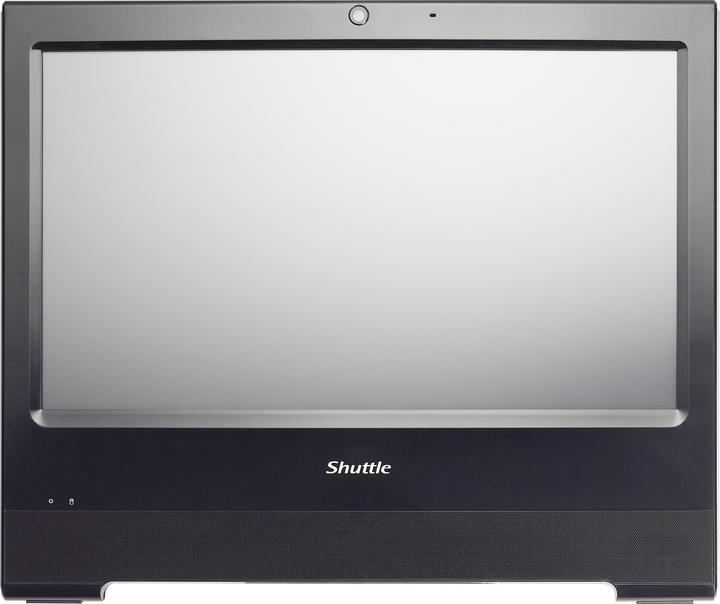

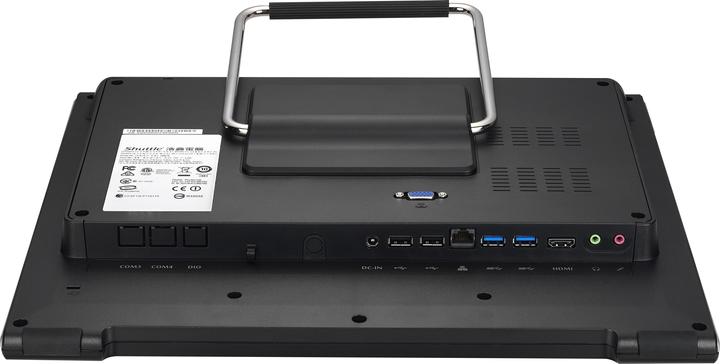

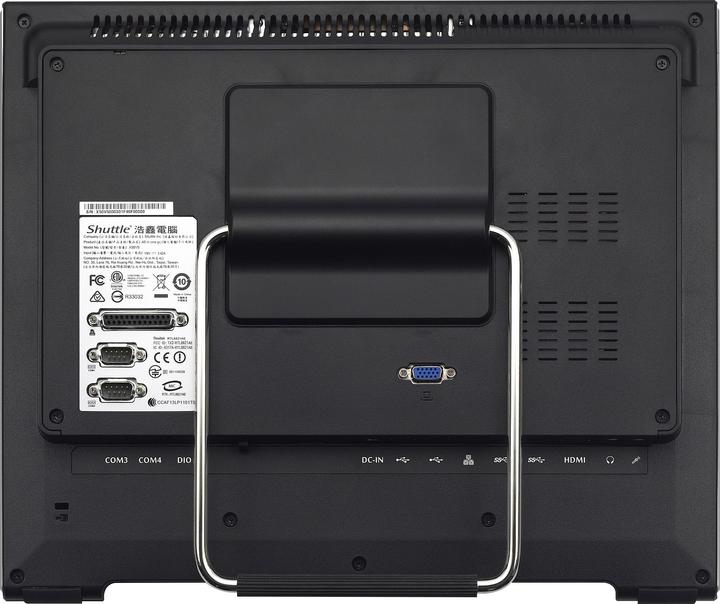

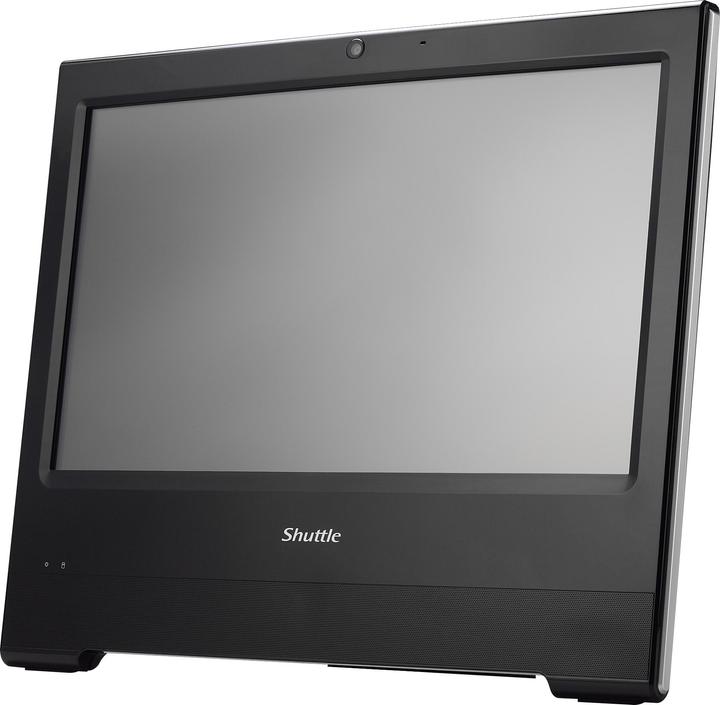

The Shuttle XPC X50V6 is a powerful all-in-one PC specifically designed for use in POS, POI, and kiosk applications. Equipped with an Intel Celeron 3865U processor based on the modern Kaby Lake architecture, this system offers efficient performance while consuming minimal power. The passive cooling ensures nearly silent operation, making it ideal for environments where noise must be minimized. The arrangement of ports on the underside of the chassis and the IP54-certified front make the X50V6 particularly robust and resistant to dust and splashes. These features make it an excellent choice for 24/7 continuous operation in demanding environments.

  • Fanless design for silent operation
  • Energy-efficient with low power consumption
  • IP54-certified front for dust and splash protection
  • Multi-format card reader for easy access to memory cards
  • Theft protection with Kensington lock.

Key specifications

Number of processor cores
2 -Core
Graphics card model
HD Graphics 610
Internal connection options
S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x), VGA (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
6422929

General information

Manufacturer
Shuttle
Category
Barebones
Manufacturer no.
X50V6 BLACK
Release date
13.8.2017
External links
Manufacturer's site (de)

Barebone properties

Design
All-in-one

Processor

Processor type
Intel Celeron 3865U
Clock frequency
1.80 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
2
Socket
BGA 1356
Max. TDP
15 W

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
HD Graphics 610

Internal connections

Internal connection options
S-ATA III (1x)
Data storage controller
Intel SoC
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.0 (2x)

Network

Network connections
RJ45 (1x)

Wireless transmission

Connectivity
RJ45
Wi-Fi standard
Wi-Fi 4 / 802.11n

Video connections

Video connections
HDMI (1x), VGA (1x)

Audio connections

Audio outputs
Headphones Out (1x)

Card reader properties

Memory card type
SD, SDHC, SDXC

Power supply properties

Power
65 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Pen

Product dimensions

Weight
3600 g
Width
391 mm
Length
42 mm
Height
327 mm

Package dimensions

Length
46 cm
Width
42.50 cm
Height
13.50 cm
Weight
4.28 kg
