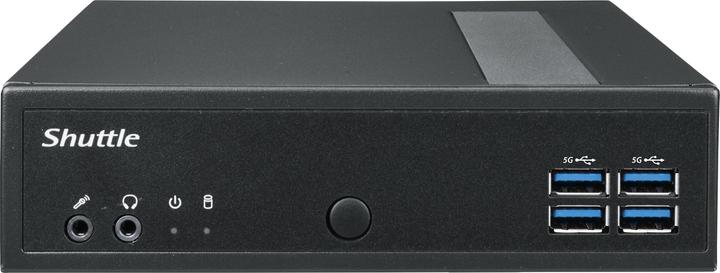

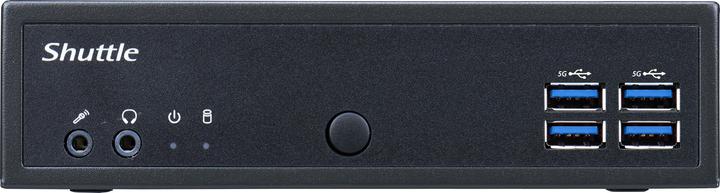

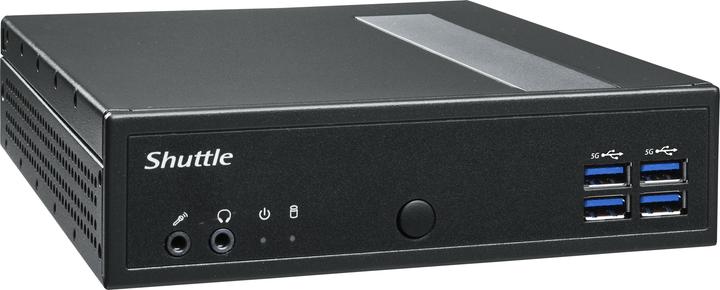

The Shuttle XPC slim Barebones of the DL30N series are the successors to the DL20N series. These fanless slim PC barebones with an energy-efficient Intel "Alder Lake-N" processor from the 12th generation are suitable for building particularly slim PC systems with drives and operating systems, as well as for purely network-based applications in client/server environments. Two Intel 2.5G network ports provide excellent network connectivity, and the optional Shuttle accessory WWN03 allows for the installation of an LTE module for mobile internet access. The integrated graphics are based on Intel's powerful Intel UHD Graphics with hardware acceleration for 4K videos. Together with SSD storage, this slim PC operates virtually silently.
Number of processor cores | 4 -Core |
Graphics card model | Intel UHD Graphics |
Internal connection options | M.2 (2x), S-ATA (1x) |
Network connections | RJ45 (2x) |
Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Memory type | DDR5 RAM |
USB ports | USB-A |
Item number | 43305853 |
Manufacturer | Shuttle |
Category | Barebones |
Manufacturer no. | DL30N |
Release date | 10.4.2024 |
Sales rank in Category Barebones | 55 of 599 |
May include power adapter | Yes |
Design | Ultra Slim |
Processor type | Intel N100 |
Clock frequency | 3.40 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Max. turbo clock rate | 3.40 GHz |
Max. TDP | 6 W |
Processor properties | Onboard processor |
Memory type | DDR5 RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 1 |
Max. memory slots | 1 |
Max. RAM | 16 GB |
Memory voltage | 1.10 V |
Graphics card model | Intel UHD Graphics |
Max. connected monitors | 3 x |
Internal connection options | M.2 (2x), S-ATA (1x) |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (4x) |
Data ports | RS-232 (2x) |
Network connections | RJ45 (2x) |
Max. port speed | 2500 Mbit/s |
Network features | Wake on LAN |
Connectivity | Ethernet |

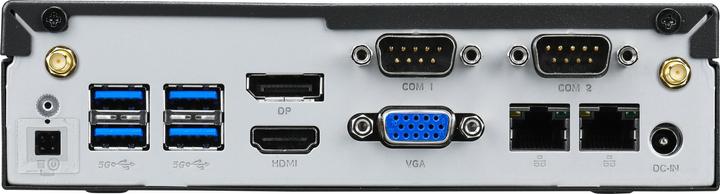

Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Audio outputs | Headphone jack 3.5mm (1x) |
Power | 65 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Beater, VESA mount |
Weight | 800 g |
Width | 165 mm |
Length | 190 mm |
Height | 43 mm |
Length | 26.20 cm |
Width | 25.40 cm |
Height | 14 cm |
Weight | 2.17 kg |
