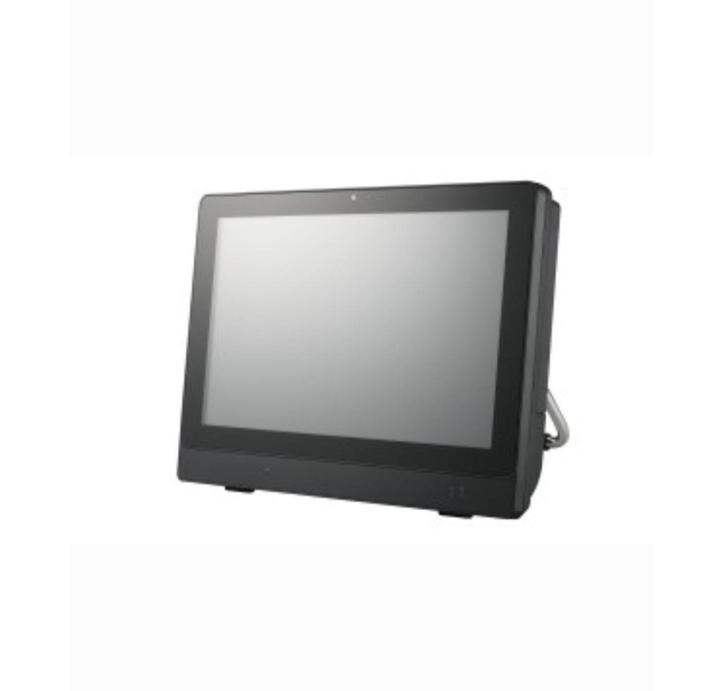

XPC all-in-one P25N
Compact all-in-one PC for POS or control applications
The Shuttle XPC all-in-one P25N with an 11.6" multitouch display is designed as a space-saving cash register system or as a control unit for media playback or automation. With its practical foldable stand, the tilt can be individually adjusted, and it can also be mounted on a VESA stand or wall bracket. The front is protected against dust and splashes according to IP54 standards. A cable management box on the back keeps things tidy. Thanks to completely passive cooling, the system is virtually silent, maintenance-free, and suitable for 24/7 continuous operation.
Details
Extensions via M.2 module
This AiO features two M.2 slots that allow for the addition of various storage and expansion modules, such as NVMe SSDs, wireless LAN cards, or mobile modems. These M.2 slots utilize the high-speed PCI-Express interface, enabling fast data transfer and efficient system performance. (The M.2-2230 slot is occupied by a pre-installed Wi-Fi module.)
DDR5 RAM
This device utilizes modern DDR5 memory technology, which offers improved performance and efficiency compared to previous generations. It supports up to 16 GB of DDR5 SO-DIMM memory, ensuring smooth multitasking and responsiveness even with the most demanding applications. With higher bandwidth and improved data transfer rates, DDR5 provides faster...
Number of processor cores | 4 -Core |
Graphics card model | Intel UHD Graphics |
Internal connection options | 6-pin PCI Express (1x) |
Network connections | RJ45 (1x) |

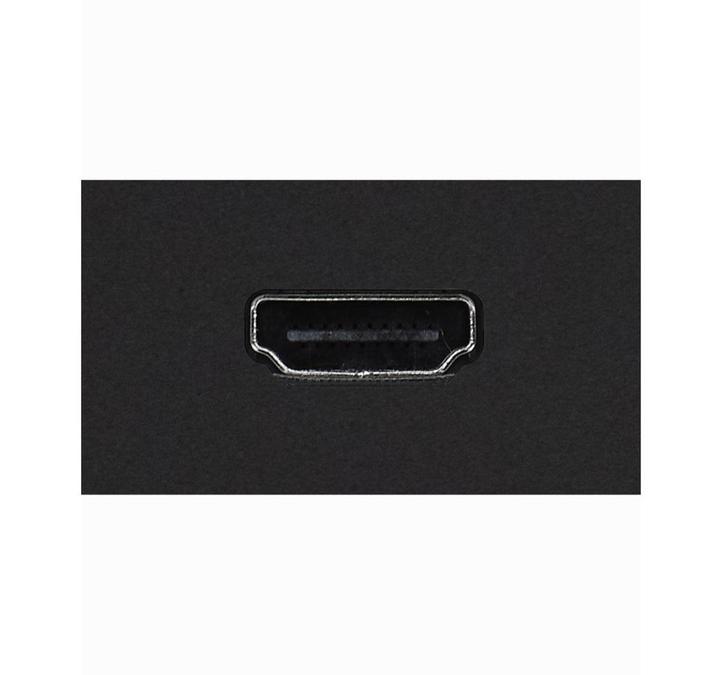

Video connections | HDMI (1x) |
Memory type | DDR5 RAM |
USB ports | USB-A |
Item number | 42336086 |
Manufacturer | Shuttle |
Category | Barebones |
Manufacturer no. | P25N BLACK |
Release date | 29.2.2024 |
Sales rank in Category Barebones | 46 of 586 |
May include power adapter | Yes |
Design | All-in-one |
Processor type | Intel N100 |
Clock frequency | 3.40 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 4 |
Max. turbo clock rate | 3.40 GHz |
Max. TDP | 6 W |
Processor properties | Onboard processor |
Memory type | DDR5 RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 1 |
Max. memory slots | 1 |
Max. RAM | 16 GB |
Memory voltage | 1.10 V |
Graphics card model | Intel UHD Graphics |
Internal connection options | 6-pin PCI Express (1x) |
"Number of 5.25"" drive slots" | 1 x |
Number of 3.5" drive slots (internal) | 1 x |
Number of 3.5" drive slots (external) | 1 x |
"Number of 2.5"" drive slots" | 1 x |
USB ports | USB-A |
Exact USB ports | USB-A 3.1 Gen 2 (2x) |
Network connections | RJ45 (1x) |
Max. port speed | 2500 Mbit/s |
Connectivity | Bluetooth |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Wi-fi frequency | 5 GHz |
Bluetooth version | 4.2 |
Video connections | HDMI (1x) |
Audio outputs | 3.5mm jack (1x) |
Power | 65 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Barebone, External power supply, Quick installation guide |
Weight | 1950 g |
Width | 299 mm |
Length | 59 mm |
Height | 207 mm |
Length | 39.60 cm |
Width | 28.70 cm |
Height | 18 cm |
Weight | 3.19 kg |
