Seeed Studio Grove Base für XIAO

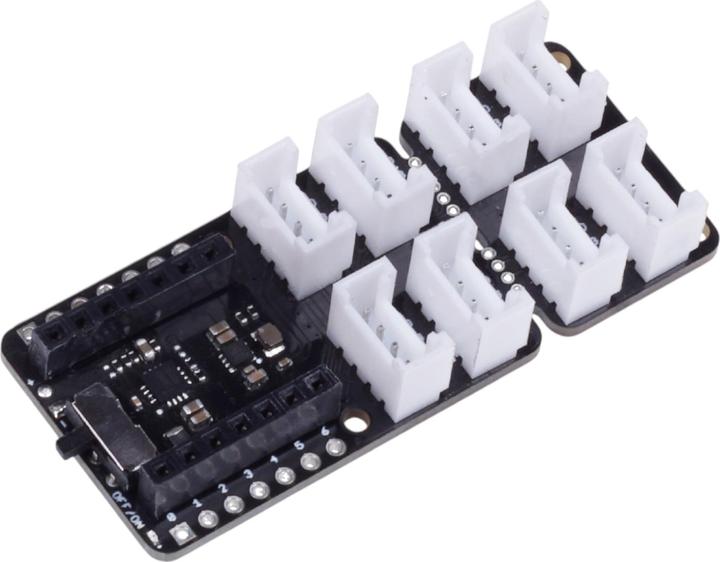

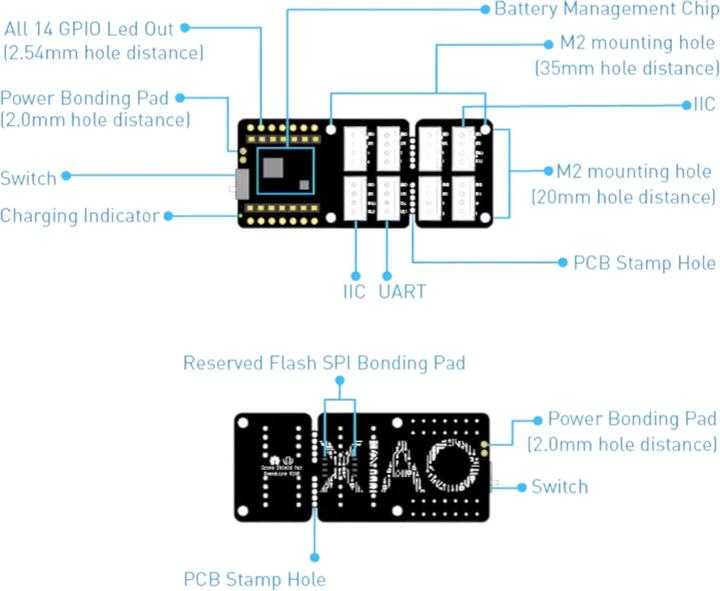

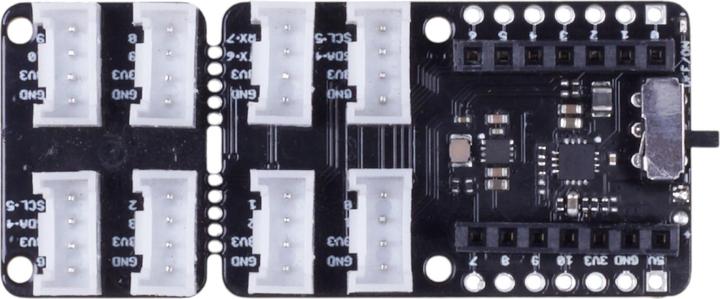

The Seeed Studio Grove Base for XIAO is an expandable Grove board specifically designed for the Seeed Studio XIAO series. With this plug-and-play expansion board, you can easily connect your XIAO module to various Grove modules without the hassle of wiring or soldering. Thanks to the integrated battery management chip, you can connect a 3.7V lithium battery and charge it directly. This makes the shield ideal for mobile and portable projects. It also features eight Grove connectors, including two I2C and one UART interface, allowing you to easily integrate a variety of sensors and actuators. The compact and modular design allows you to split the board into a smaller version if needed, saving space. Additionally, there is an SPI flash bonding pad available to expand the memory of your XIAO module. With the onboard power switch and charging status LED, you have full control over power consumption at all times. This versatile Grove expansion provides a powerful and flexible solution to optimally extend your XIAO board for various electronics projects.

Recommended Accessories:
XIAO Microcontroller

Technical Specifications:
Manufacturer: Seeedstudio
Manufacturer SKU: 103020312
Operating Voltage: 3.3V / 3.7V Lithium Battery
Maximum Load Capacity: 800mA
Maximum Charging Current: 400mA
Operating Temperature: -40°C to 85°C
Storage Temperature: -55°C to 150°C
Grove Interfaces: 2x I2C, 1x UART
Dimensions: 53 x 43 x 11mm (reducible to 25mm x 39mm)
Weight: 11.5g

Included in Delivery:
1x Seeed Studio Grove Base for XIAO
2x 1x7pin Header Strips.
