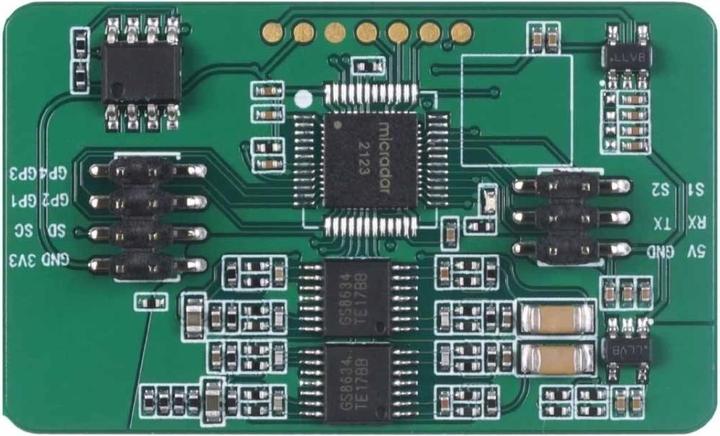

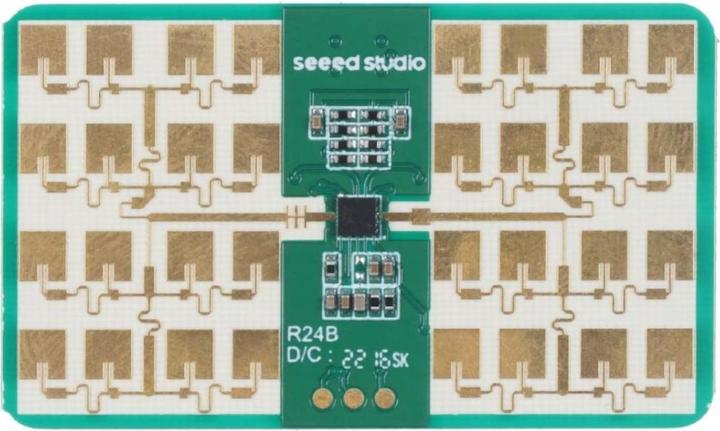

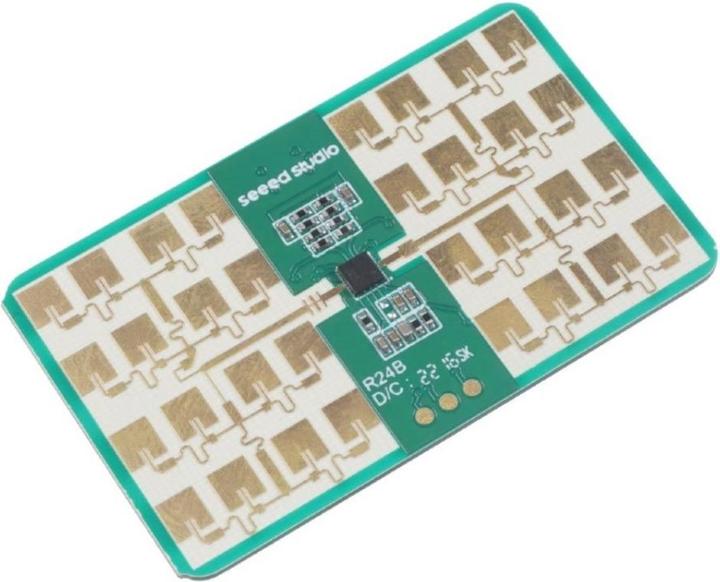

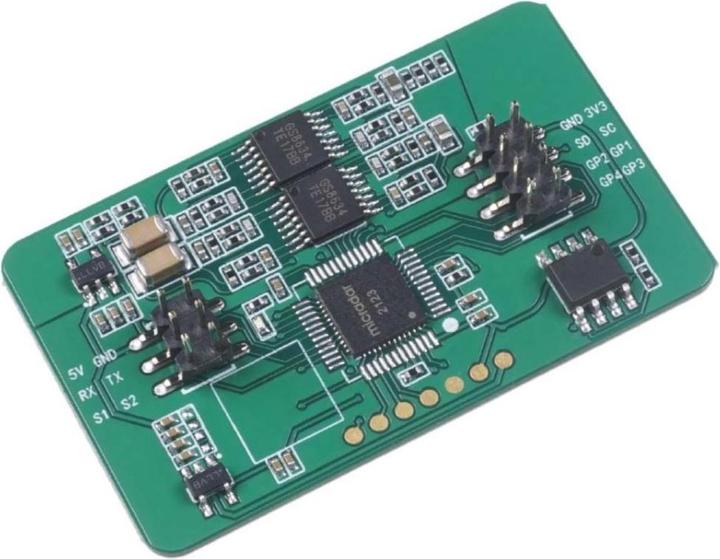

Seeed Studio 24GHz mmWave Radar Sleep Sensor

This is an innovative, high-quality sleep monitoring sensor from Seeed Studio. With this sensor, you can monitor your breathing movements during sleep and detect any potential chronic respiratory disorders. Unlike conventional PIR sensors, this one uses Doppler radar technology. This allows for better performance in detecting human activities and increased sensitivity. The radar sensor can detect movements of objects through walls and other obstacles, which is not possible with PIR.

Features:
24GHz mmWave Radar Technology
Can detect movements through obstacles
Can detect breathing movements at a distance of up to 1.5 m
Not affected by humidity, temperature, noise, wind, dust, and light
Measurement angle 40° horizontal and vertical

Technical Details:
Manufacturer: Seeed Studio
Manufacturer SKU: 101990885
Chip: MR24BSD1
Operating Voltage: 5V
Max. Distance for Breathing Movement: 1.5 m
Max. Distance for Sleep Movement: 2.75 m
Operating Temperature: -20°C to 60°C
Transmission: 6dBM

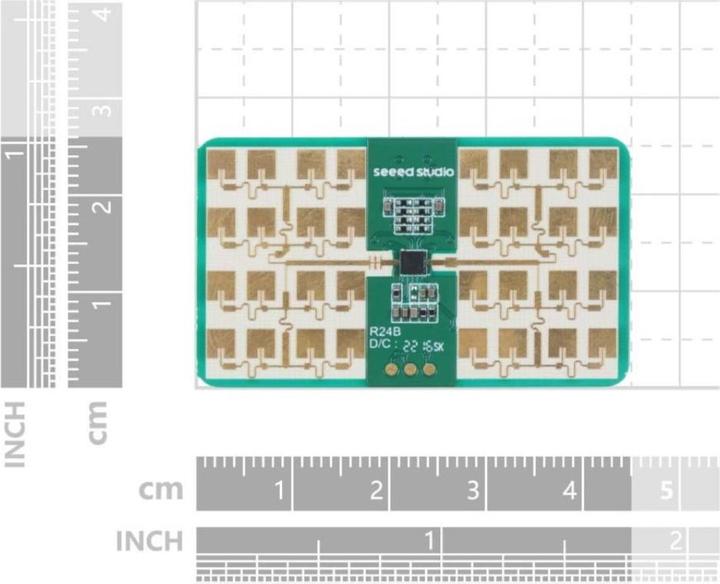

Dimensions: 46 x 28 x 8 mm
Weight: 6 g

Package Contents:
1x 24GHz mmWave Radar Sleep Sensor.
