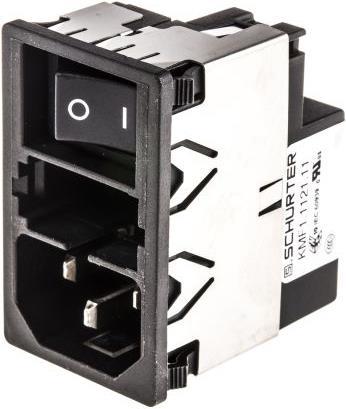

Schurter IEC inlet w/2P sw,2A w/fltr

Gender: male
Number of fuses: 2
Fuse size: Dual 5 x 20 mm
Switch type: 2-pole
Connection type: Soldering
Rated current: 2 A
Operating voltage: 250 V AC
Mounting type: Snap-In
Operating frequency: 50/60 Hz
IEC connector type: C14
Width: 30.5 mm
Depth: 42.9 mm
Height: 50 mm

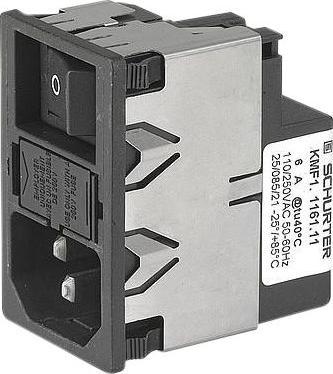

The KMF series power entry modules with line filter from SCHURTER are an ultra-compact solution with small dimensions both behind and in front of the panel. These power line filters snap in from the front and have four main functions. The KMF series serves as a line filter (in standard and medical versions), input protection according to Class I or II, as a fuse holder for 1- or 2-pole fuse inserts in 5 x 20 mm, as well as a 2-pole power switch. These power entry modules feature flexible steel segments for excellent contact and innovative EMC shielding. All individual components are delivered pre-wired, and the fuse holder inserts serve as an additional safety measure. The IEC device inlet of the KMF series from Schurter for front panel mounting includes a filter, 1- or 2-pole fuse holder, and 2-pole power switch. These filters have a compact design with small dimensions in front of and behind the panel. EMC shielding with flexible steel segments ensures good contact. Easy flexible snap-in mounting. Available in Class 1 or 2 versions. Suitable for use in devices according to IEC/UL 60950 and in medical devices according to IEC/UL 60601-1.
