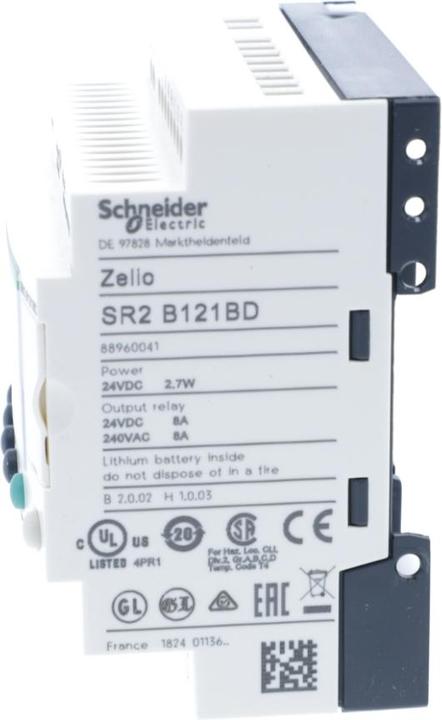

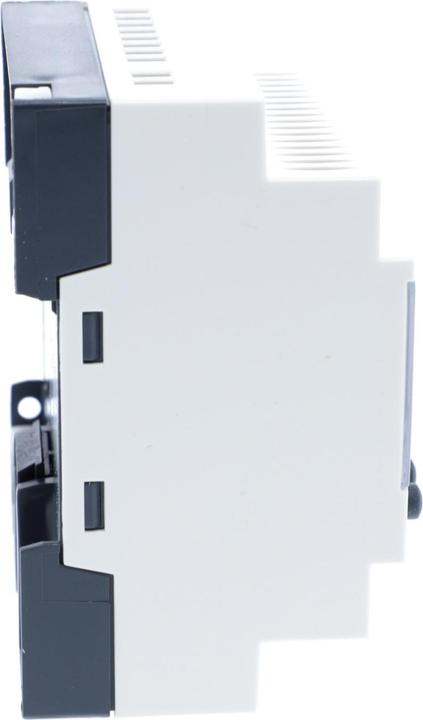

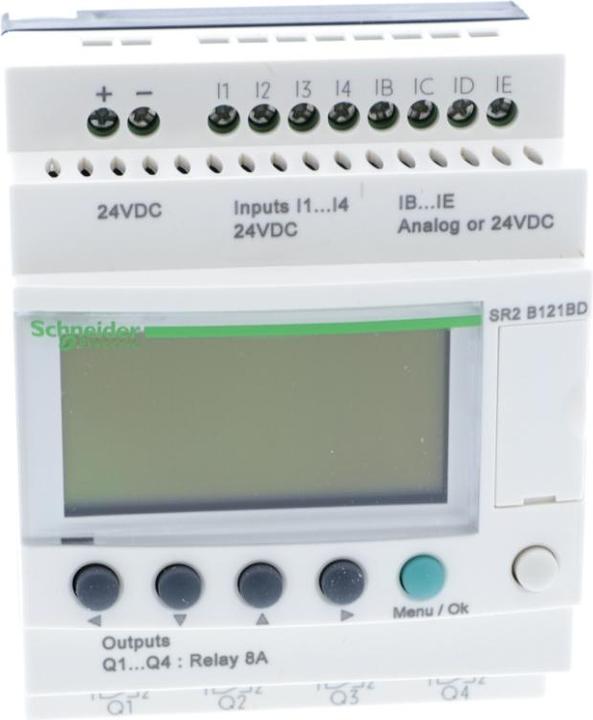

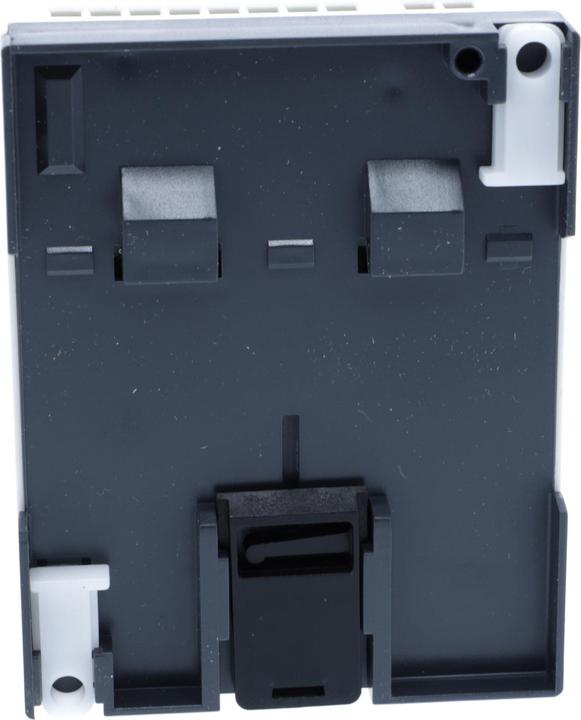

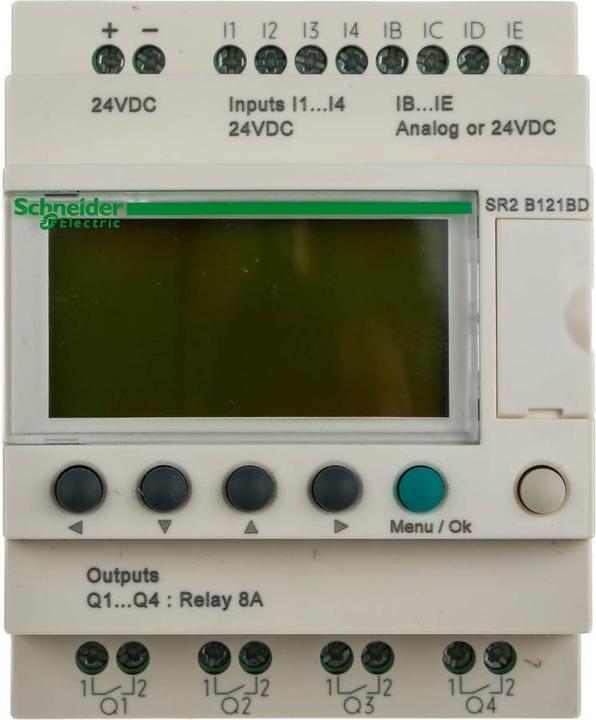

Schneider Electric Zelio process module

Series: Zelio Logic
Supply Voltage: 24 VAC
Output Type: Relay
Number of Outputs: 4
Input Type: Analog, discrete
Number of Inputs: 8
Mounting Type: DIN Rail
Width: 107.6 mm
Length: 71.2 mm
Connection Type: Screw
Programmable Interface: Computer, Operator Panel
Module Type: Logic Control Module
Output Current: 8 A

Zelio Logic Smart Relays – Compact. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can have up to 40 extended I/O. Programming and Software: Easy programming can be done independently using the buttons on the front of the relay or on a PC using "Zelio Soft" software. Programming with a PC can be done using either LADDER language or Function Block Diagram (FBD) language. Memory: The Zelio Logic Smart Relays feature memory buffering that allows programs to be copied to other Smart Relays. The memory allows for a backup copy of the program to be stored before replacing the product, and for relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlighting, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw connection terminals, protection class IP20.
