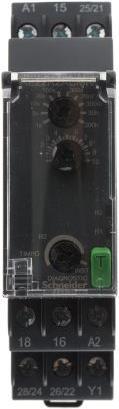

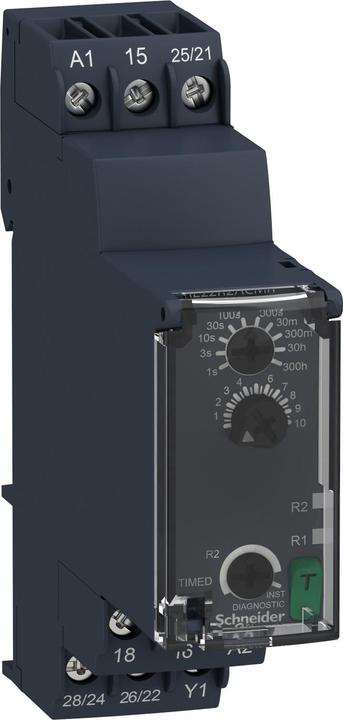

Schneider Electric Star-Delta Timer Relay

Harmony Time. Electronic time relay for controlling automation applications with a width of 22.5 mm for mounting on a DIN rail. It features a time function with symmetrical response and release delays (same time for both delays), which also allows for the summation of contact interruptions. The time range spans from 0.05 s to 300 h. Two relay contacts at the output can switch up to 8 A each. The second relay output can switch in sync with the first output or indicate operational readiness. Settings are made via control elements on the front, which can be protected against changes under a transparent cover. A lit scale pointer makes it easy to see the potentiometer settings from a distance. The front diagnostic switch allows for the activation of the output relay, particularly useful for testing the overall application during long time functions. Closing the transparent cover automatically resets the diagnostic switch. LED indicators provide information about the status. The wide voltage power supply (24-240 VAC/DC) allows for universal use. The connection is made via screw terminals.
