Schneider Electric Star delta time relay 24VDC/24-240VAC

Schneider Electric Star-Delta Timer Relay RE22R1QMU

Manufacturer: Schneider Electric
Description: Star-Delta Timer Relay
Type: RE22R1QMU
Electrical connection type: Screw terminal
Delayed response function: no
Delayed drop-out function: no
Switching-on pulse function: no
Switching-off pulse function: no
Star/Delta function: yes
Pulse shaping function: no
Flashing with pause start, fixed time function: no
Flashing with pulse start, fixed time function: no
Pulsing with pause start, variable function: no
Pulsing with pulse start, variable function: no
With plug socket: no
Remote control possible: yes
Suitable as remote control: no
Can be mounted on contactor: no
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24 V
Voltage type for operation: AC/DC
Rated current: 8 A
Time range: 0.1..360000 s
Number of outputs, delayed, changeover: 1
Outputs, switchable delayed/undelayed: no
With semiconductor output: no
Suitable for DIN rail mounting: yes
Suitable for front mounting: no
Width: 22.5 mm
Height: 90 mm
Depth: 79.5 mm

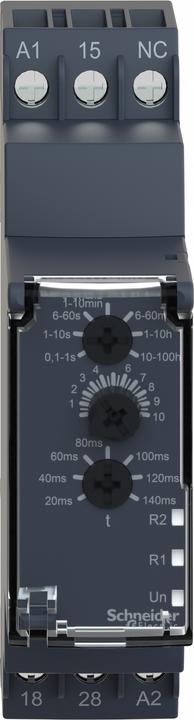

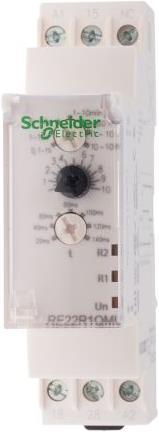

Schneider Electric Star-Delta Timer Relay RE22R1QMU: additional details Zelio Time. Electronic timer relay for controlling automation applications with a width of 22.5 mm for mounting on a DIN rail. It features the time function for Star-Delta starting. The time range includes 0.1 s - 100 h, as well as 20-140 ms. A relay changeover contact at the output can handle loads of up to 8 A. Settings are made via control elements on the front, which can be protected against changes under a transparent cover. LED indicators provide information about the status. The supply voltage is 24 VDC/24-240 VAC. The wiring connection is made via screw terminals.
