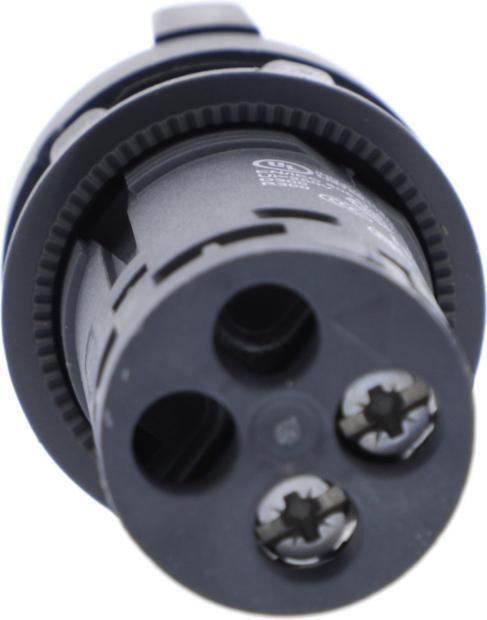

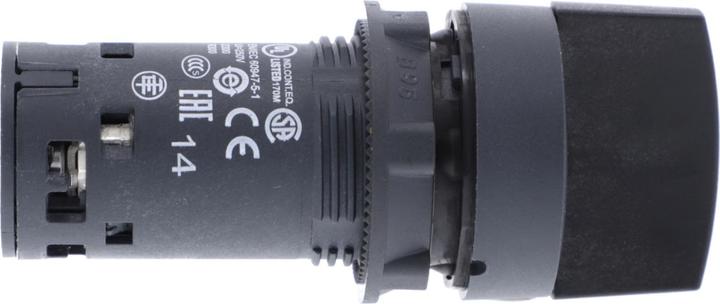

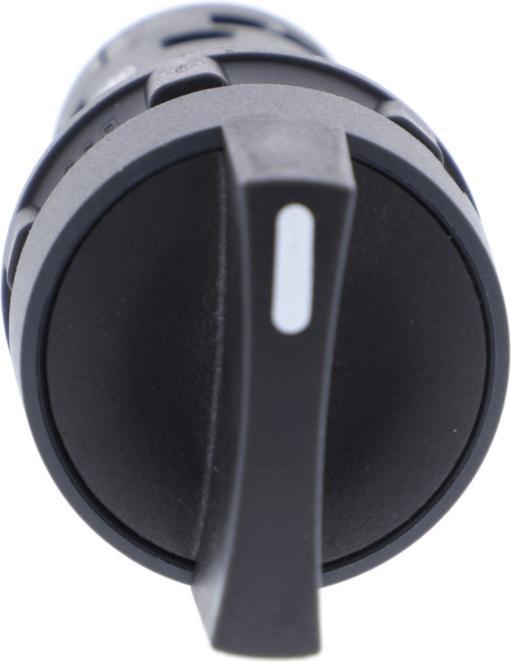

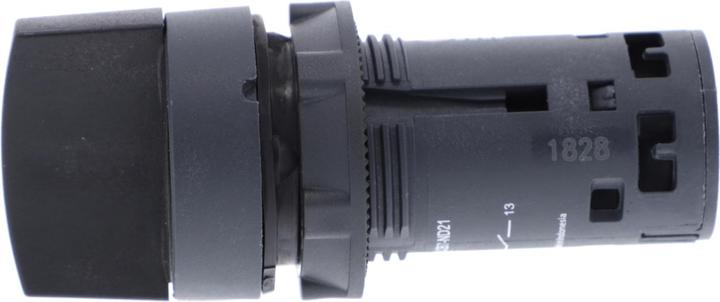

Schneider Electric Selector switch

Schneider Electric Selector Switch XB7ND25

Manufacturer: Schneider Electric
Designation: Selector switch 2 positions, 1NO, 1NC
Type: XB7ND25
Number of switching positions: 2
Actuator type: Rotary knob
Suitable for lighting: no
With light source: no
Button color: black
Hole diameter: 22.5 mm
Switch function latching: yes
Momentary: no
Protection class (IP): IP65/IP67
Protection class (NEMA): 12
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection type: Screw connection
With front ring: yes
Material of front ring: Plastic
Front ring color: black

Schneider Electric Selector Switch XB7ND25: additional details
The Harmony XB7 series offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. This plastic selector switch in monoblock design is ideal for universal and cost-effective use in industry, mechanical engineering, and control panel construction. The black selector switch features a high IP protection class and two positions. Installed in a 22mm hole, the switch is connected using the screw terminals located on the back. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
