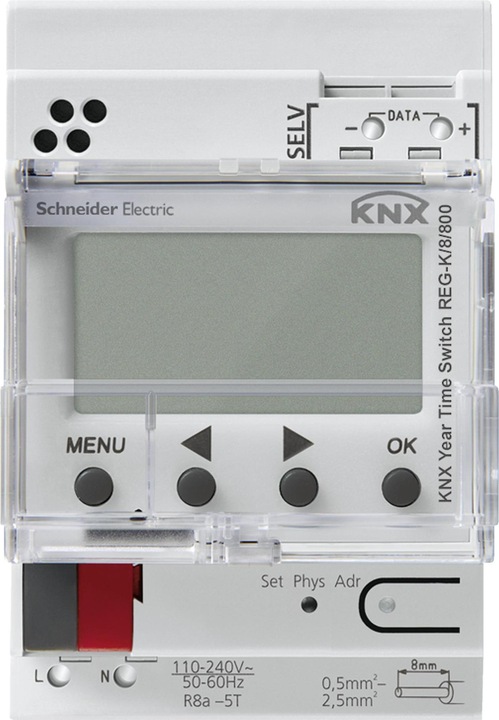

Schneider Electric SE MTN6606-0008 KNX year time switch REG-K/8/800, light grey

Schneider Electric KNX Annual Timer MTN6606-0008

Manufacturer: Schneider Electric
Designation: KNX Annual Timer REG-K/8/800, light grey
Type: MTN6606-0008
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Daily Program: yes
Weekly Program: yes
Annual Program: yes
Astro Program: no
Mounting Type: REG
Width in Division Units: 3
External Programming: yes
Number of Channels: 8
Presence Simulation: no
Summer/Winter Time: yes
Radio Controlled (DCF77): yes
GPS: yes
With Bus Coupling: yes
With Memory Card: no
Holiday Progression: no
Sub-Clocks Controllable via Bus: yes
Power Reserve: 70,000 h
Protection Class (IP): IP20

The Schneider Electric KNX Annual Timer MTN6606-0008 is an 8-channel KNX timer with annual and astro programs. It offers connection options for DCF and GPS antennas for radio time synchronization. Date and time can be output via the bus. Programming can be done either manually on the device or via software on a PC. After programming on the PC, all switching times can be exported to a memory chip available as an accessory and transferred from this chip to one or more timers.

The timer features extensive annual clock functions, 8 channels, 800 memory locations, and a power reserve of 8 years (lithium battery). It is equipped with an integrated bus coupler and is suitable for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal.
