Schneider Electric SE LV434023 3p+N Powertag NSX up to 630A Measuring module for NSX 100/160/250 power sc

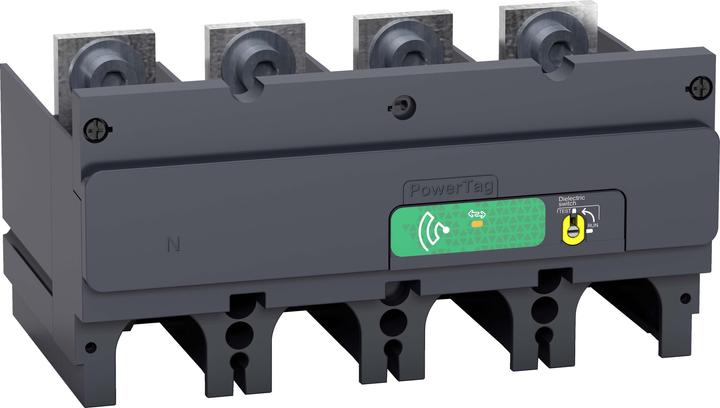

The PowerTag M630 3P+N is a wirelessly communicating energy meter. With its Monoconnect design, it is suitable for ComPact NSX 400-630, ComPact NS 400-630, and TeSys GV6. It must be connected to a concentrator or a gateway to enable monitoring of the circuit and diagnostics down to the load level. It has been specifically designed for applications in energy management, load monitoring, and power availability. It includes accurate real-time measurements of active and reactive energy, active, reactive, and apparent power, current, voltage, and power factor. In the event of a power outage, it sends a voltage loss alarm and the current value per phase before losing power. The PowerTag Energy M630 complies with the IEC 61557-12 standard and is a PMD-II/DD/K70/1. The performance class is Class 1. The maximum current Imax is 630A, the base current Ib is 100A, the saturation current is 1260A, and the inrush current is 400mA. The rated voltages are Phase-Neutral 230VAC +/- 20% and Phase-Phase 400VAC +/- 20%. The maximum consumption is less than or equal to 3.7VA. It can be mounted directly on the bottom of the circuit breaker, on the Vigi attachment terminals, or on the top or bottom of the connection socket (if available). The product color is gray (RAL7016), the weight is 250g, and the protection class is IP20, IK07. The operating temperature ranges from -25°C to +70°C, while the storage temperature ranges from -50°C to +85°C.
