Schneider Electric Schneider UpperNSYTBCN3108Busbar chamber PanelSeT SFN
Product details

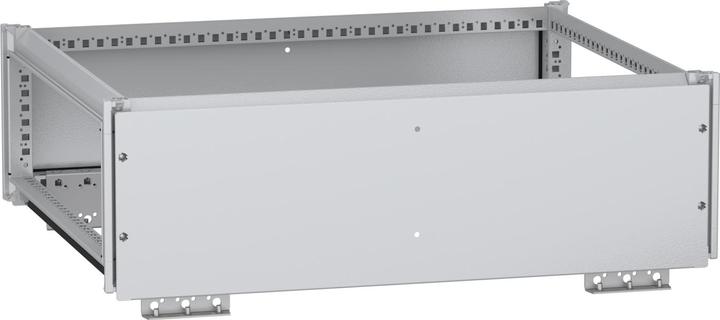

This upper busbar chamber is a power distribution accessory that is placed on top of PanelSeT SFN floor standing enclosures made of decarbonised steel. It contains recycled steel produced with renewable energy, resulting in a significant reduction in CO2 emissions. It has a nominal height, width and depth of 300mm, 1000mm and 800mm respectively. The frame and supports of the chamber are made of galvanised steel to ensure a long service life. The panels are made of sheet steel. An epoxy-polyester powder coating ensures an even appearance. The chamber has a grey (RAL 7035) colour with a black (RAL 9005) handle. It is supplied with a seal, front and rear panels and four eyebolts. The chamber has protection class IP55, i.e. it is resistant to the ingress of dust, water and oil. The housing is also impact-resistant and has an IK10 rating. It is easy to operate thanks to access from the rear, front and side.
