Schneider Electric Schneider Stands e. NSYSFN20360PanelSeT SFN a.decarbonised

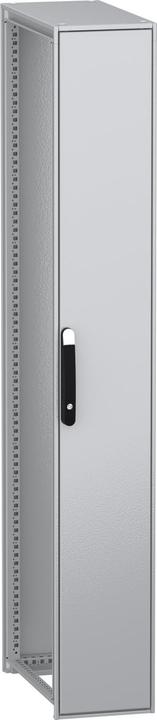

This PanelSet SFN is a freestanding enclosure made of decarbonized steel, suitable for multipurpose applications. It contains recycled steel produced with renewable energy, resulting in a significant reduction in CO2 emissions. It has nominal dimensions of 2000 mm in height, 300 mm in width, and 600 mm in depth. The frame and supports of the enclosure are made of galvanized steel to ensure a long lifespan. The door and panels are made of sheet steel, while the handle is made of polyamide 6 reinforced with 30% glass fibers. An epoxy-polyester powder coating provides a smooth appearance. The enclosure is grey (RAL 7035) with a black (RAL 9005) handle, a single door, a back panel, and a roof. The door has an opening angle of up to 120 degrees and is reversible, meaning it can be opened from either side. The door is equipped with a four-point lock and a 5-mm double-bit handle for security. The enclosure has an IP55 protection rating, making it resistant to the ingress of dust, water, and oil. It is also impact-resistant with an IK10 rating. Operation is convenient with access from the back, front, and sides.
