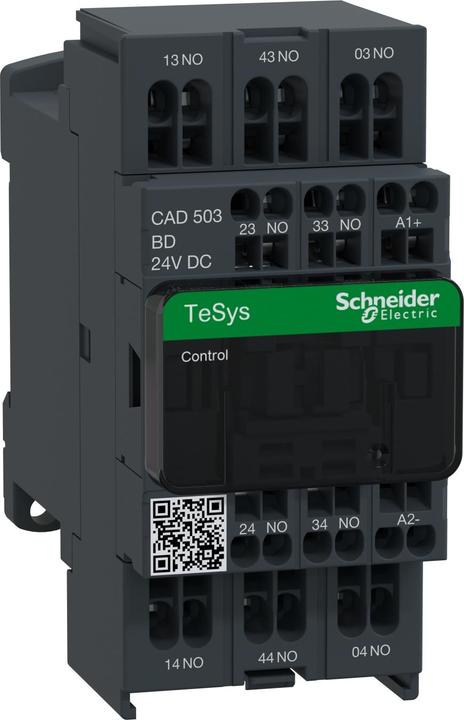

Schneider Electric SCHN contactor relay

Ratings
Currently out of stock
Free shipping starting at 50.–

input voltage3

Product details

Schneider Electric auxiliary contactor CAD503-BD
Manufacturer: Schneider Electric
Designation: Auxiliary contactor 5S, 24VDC, FZ
Type: CAD503-BD
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operating current Ie, 400 V: 10 A
Connection type auxiliary circuit: Spring-cage connection
Mounting type: DIN rail/screw
Interface: No
Number of auxiliary contacts as NO contacts: 5
With LED indicator: No
Suitable for manual operation: No

Schneider Electric auxiliary contactor CAD503-BD: more details
TeSys auxiliary contactors CAD. Auxiliary contactor, DC-operated 24 V DC with integrated protective circuit. Connection spring terminals, auxiliary contact 5 S, MTZ 12. Device width 45 mm, screw and snap-on mounting. Five integrated auxiliary contacts, can be extended by up to nine auxiliary contacts.

Key specifications

Relay type
Contactor relay
input voltage
24 V
Electric current output
10 A
Output current type
DC

General information

Item number
33589416
Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
CAD503BD
Release date
17.5.2023

Relay properties

Relay type
Contactor relay
input voltage
24 V
Electric current output
10 A
Output current type
DC
Switching function
Normally open
Number of openers
0x
Number of closers
5x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Indonesia

Scope of delivery

Scope of delivery
24V DC, 5S, Contactor relay

Product dimensions

Length
93 mm
Width
45 mm
Height
77 mm
