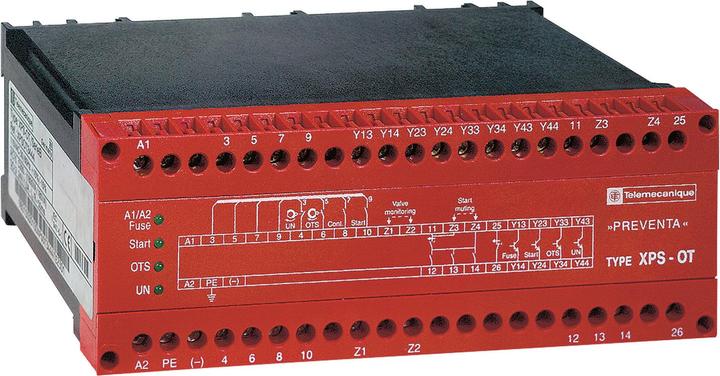

Schneider Electric Safety module for eccentric presses, XPSOT3744

Schneider Electric OT disconnector XPSOT3744
Manufacturer: Schneider Electric
Designation: OT disconnector NW-Contr. 230VAC
Type: XPSOT3744
Type of electrical connection: Screw connection
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Type of voltage for actuation: AC
Speed measuring range: 0 1/min
With detachable terminals: No
Signal evaluation: Single-channel
With start input: Yes
With feedback loop: Yes
Number of outputs, safety-related, non-delayed, contact-based: 1
Number of outputs, signalling function, non-delayed, contacting: 3
Number of outputs, signalling function, non-delayed, semiconductor: 4
Suitable for safety functions: Yes
SIL according to IEC 61508: 3
Performance level according to EN ISO 13849-1: Level e
Width: 200 mm
Height: 73 mm
Depth: 118 mm

Schneider Electric OT switch XPSOT3744: more details
Preventa safety relay XPS. Safety module for eccentric presses for safely stopping the press ram at top dead centre and for automatic overtravel control. The module enables the creation of self-monitoring, redundant control systems. The supply voltage is 230 VAC.
EAN: 3389110724769.
