Schneider Electric Reversing contactor LC2DT40P7

Ratings
Delivered between Fri, 17.10. and Fri, 31.10.
free shipping

Product details

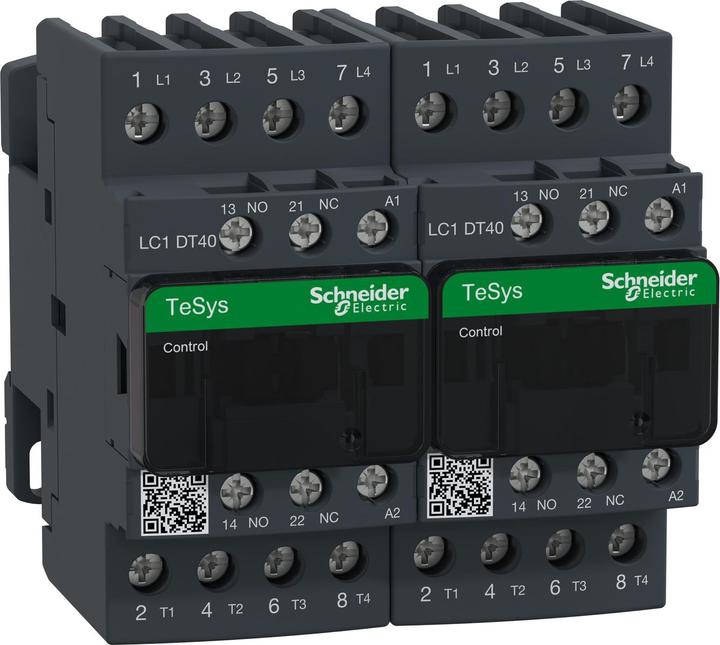

The LC2DT40P7 reversing contactor from Schneider Electric is a 4-pole reversing contactor combination designed for applications up to 40A/AC1. With a coil voltage of 230V at 50/60Hz, this device provides a reliable solution for various electrical control requirements. The integrated auxiliary contacts, consisting of 1S+1Ö, allow for flexible use in different applications, including safety-related areas, thanks to the certified S-mirror contact. The mechanical interlock ensures additional safety, while the connection options via screw terminals or plugs guarantee easy installation. The reversing contactor is multi-standard certified, meaning it meets the requirements of various international standards, including IEC, UL, CSA, CCC, EAC, and Marine. Additionally, it complies with Green Premium criteria, making it an environmentally friendly choice.

  • Mechanical interlock for enhanced safety
  • Multi-standard certification (IEC, UL, CSA, CCC, EAC, Marine)
  • Built-in auxiliary contacts 1S+1Ö for flexible applications
  • Certified S-mirror contact for safety applications
  • Green Premium compliant (RoHS/REACH).

Key specifications

Circuit breaker type
Auxiliary switch
Length
98 mm
Width
90 mm
number of poles
4
Item number
9730113

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
LC2DT40P7
Release date
24.9.2018

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Circuit Breaker Features

Circuit breaker type
Auxiliary switch
Mounting type
Screw fastening
number of poles
4
Rated current
25 A
Rated voltage
230 V
voltage type
AC
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
98 mm
Width
90 mm
Height
91 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
