Schneider Electric Reversing contactor combination, 4p, 32A/AC1, LC2DT32P7

was CHF229.–
Ratings
Delivered between Fri, 17.10. and Fri, 31.10.
free shipping

Product details

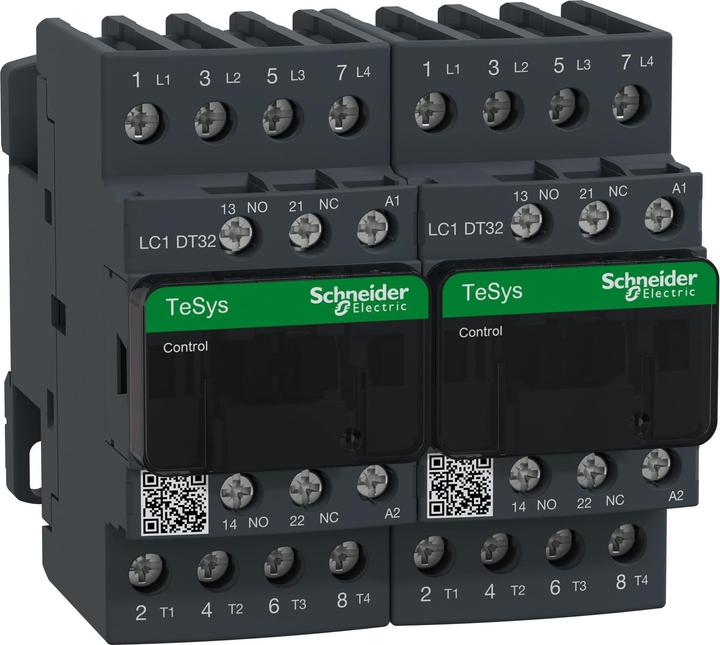

Schneider Electric reversing contactor LC2DT32P7
Manufacturer: Schneider Electric
Designation: Reversing contactor
Type: LC2DT32P7
Function: Changeover contactor
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Voltage type for actuation: AC
Rated operating current Ie at AC-1, 400 V: 32 A
Rated operating current Ie at AC-3, 400 V: 18 A
Rated operating power at AC-3, 400 V: 15 kW
Number of NO contacts as main contacts: 4
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Type of protection (IP): IP20
Type of protection (NEMA): Other
Rail mounting possible: No

Schneider Electric reversing contactor LC2DT32P7: further details
Standard contactors 0.06 - 75 kW. In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They fulfill international standards. The power ratings 40 to 65 A are equipped with EverLink terminals. These are patented and guarantee a reliable and permanent connection.

Key specifications

Circuit breaker type
Auxiliary switch
Width
90 mm
Item number
33585518

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
LC2DT32P7
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Auxiliary switch
Mounting type
Screw fastening
Rated current
32 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
230 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Width
90 mm
Height
91 mm
