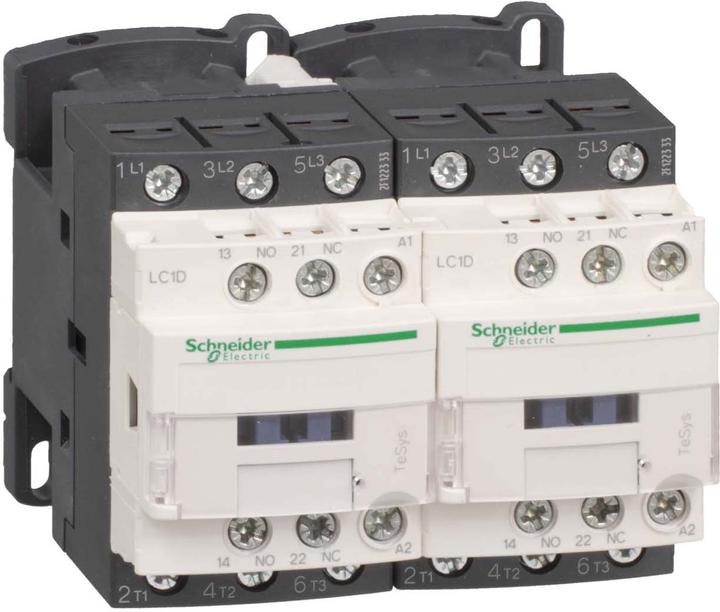

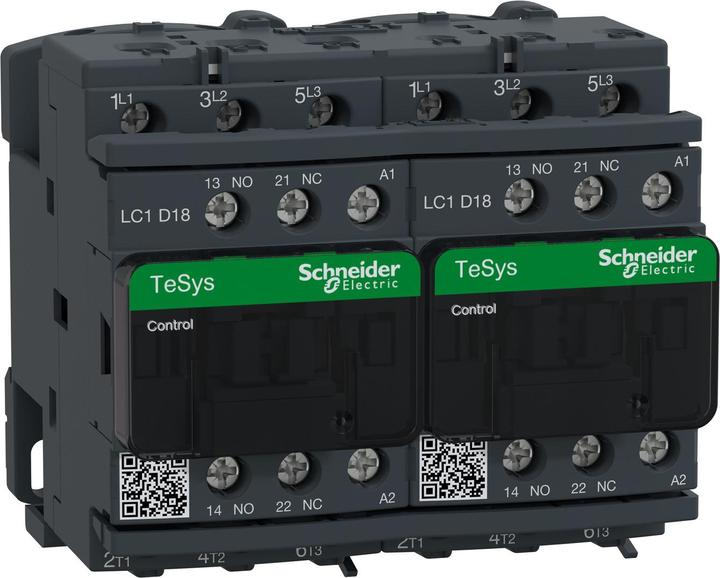

Schneider Electric Reversing contactor LC2D18P7

The LC2D18P7 reversing contactor from Schneider Electric is a powerful auxiliary contactor designed for use in industrial applications. With a rated power of 7.5 kW and a maximum output current of 18 A, this device provides reliable control of motors and other electrical loads. The reversing contactor is 3-pole and features two integrated auxiliary contacts, allowing for an expansion of up to four additional auxiliary contacts. The spatial and color separation of the control and power levels ensures easy installation and maintenance. The basic version is sealable, providing additional safety. The reversing contactor is designed for a rated voltage of 400 V according to AC-3 and operates with an alternating voltage of 230 V at 50/60 Hz. The connection options via screw terminals ensure a stable connection and ease of handling.

• 3-pole design with 1 normally open + 1 normally closed contact configuration
• Expandable by up to four auxiliary contacts
• Spatial and color separation of control and power levels
• Sealable basic version for additional safety
• Main power wiring already completed.
