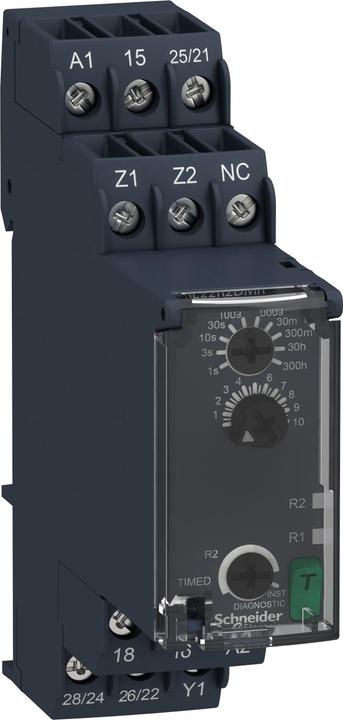

Schneider Electric Pulse-On Energisation Timer Relay

Harmony Time. Electronic time relay for controlling automation applications with a width of 22.5 mm for mounting on a DIN rail. It features a time function for symmetrical blinkers with a pause start, which also offers the possibility for restart control. The time range spans from 0.05 s to 300 h. Two relay contacts at the output can switch, each capable of handling up to 8 A. The second relay output can either switch synchronously with the first output or indicate operational readiness. Settings are made via control elements on the front, which can be protected against changes under a transparent cover. An illuminated scale pointer allows for clear visibility of the potentiometer settings even from a distance. The front diagnostic switch enables the activation of the output relay for testing the entire application, especially during long time functions. Closing the transparent cover automatically resets the diagnostic switch. LED indicators provide information about the status. The wide voltage power supply (24-240 VAC/DC) allows for universal use. Connection is made via screw terminals.
