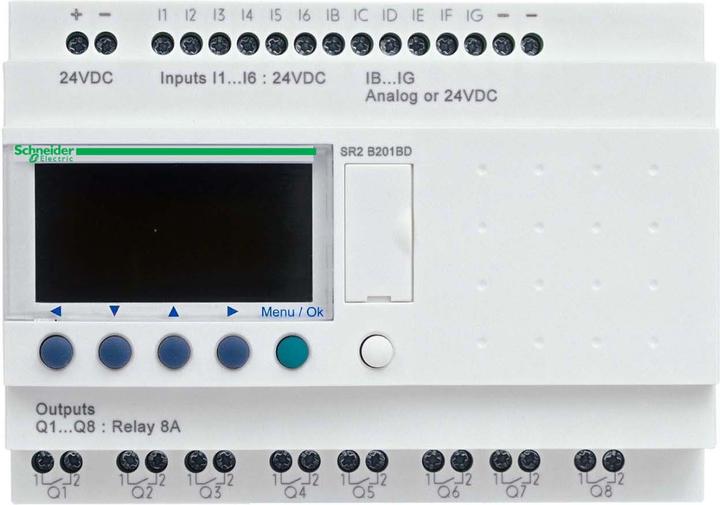

Schneider Electric Process module ZELIO

Series: Zelio Logic
Supply Voltage: 24 VDC
Output Type: Relay
Number of Outputs: 8
Input Type: Analog, discrete
Number of Inputs: 12

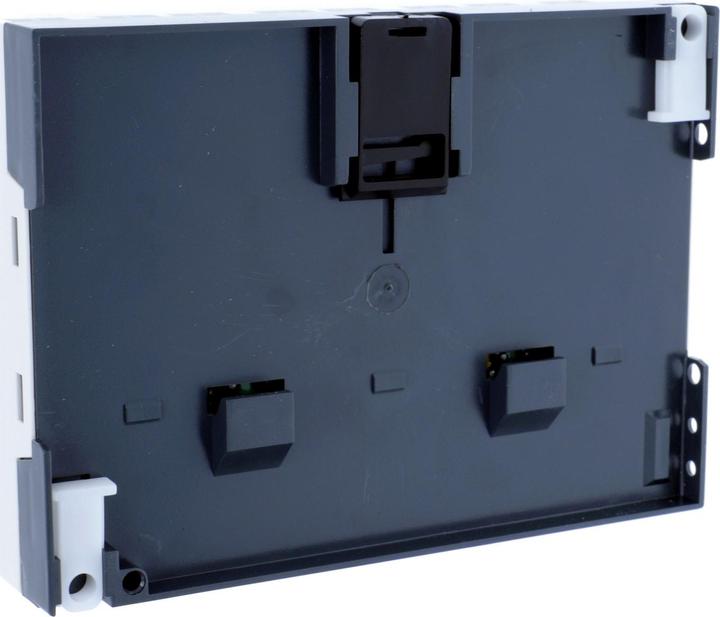

Mounting Type: DIN Rail
Display Included: Yes
Length: 124.6 mm
Dimensions: 124.6 x 107.6 x 59.5 mm
Programming Language Used: FBD, Ladder Diagram, SFC
Module Type: Logic Control Module
Maximum Operating Temperature: +55 °C

Zelio Logic Smart Relays – Compact. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays are available with 10 or 26 I/O depending on the model and can have up to 40 extended I/O.

Programming and Software: Easy programming can be done independently using the buttons on the front of the relay or on a PC using Zelio Soft software. Programming via a PC can be done in LADDER language or in Function Block Diagram (FBD) language.

Memory: The Zelio Logic Smart Relays feature memory buffering that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before replacing the product. For relays without a display or buttons, the copy program is automatically transferred upon power-up.

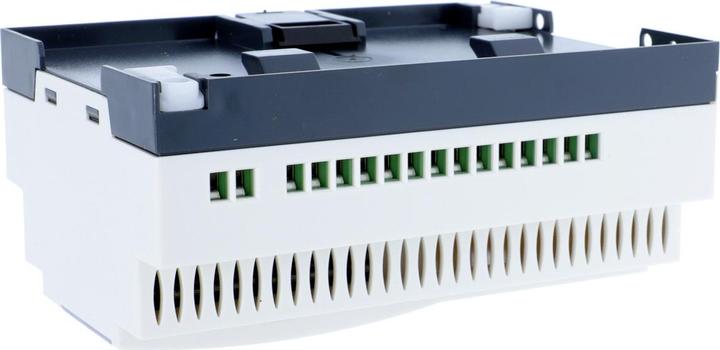

Additional Features: LCD display with backlighting, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw terminal connections, protection class IP20.
