Schneider Electric PrismaSeT-P

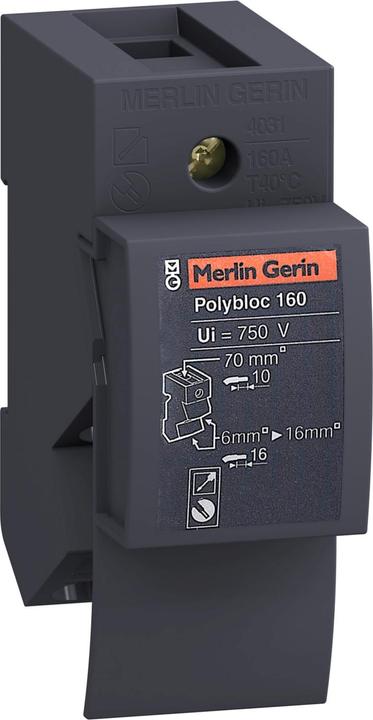

PrismaSeT P. Linergy DX distribution block, single-pole, with a permissible current rating of up to 160 A, feed terminals for cables up to 70 mm², and outgoing connection capacity for cables of 6 x 16 mm². It has a rated impulse withstand current (Ipk) of 24 kA, a rated short-circuit current (Isc) of 150 kA, and incoming side protection of 150 kA (Icc). The rated insulation voltage (Ui) is 750 V AC, the rated voltage (Ue) is 690 V AC, and the rated impulse voltage withstand (Uimp) is 8 kV. Protection class IPxxB for mounting on a DIN rail with a width of 2 module units (18 mm), a height of 95 mm, and a depth of 70 mm.
