Schneider Electric PowerTag

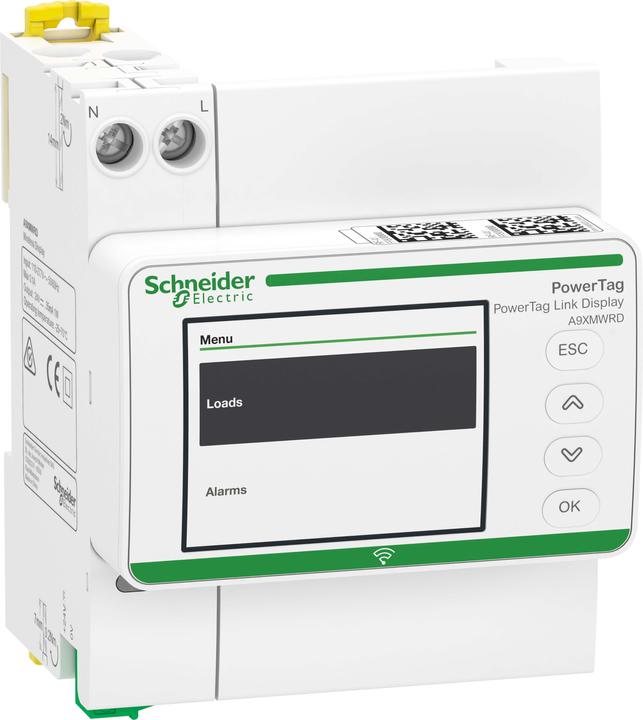

Schneider Electric PowerTag Link Display A9XMWRD

Manufacturer: Schneider Electric
Designation: PowerTag Link Display
Type: A9XMWRD
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Bidirectional Wireless: no
Composition: other
Design: Monitoring and Control Panel
Mounting Type: REG
Label Field: yes
Display: Color
Touch Function: no
Additional Interfaces: other
With Bus Coupling: yes
Material: Plastic
Material Quality: Thermoplastic
Color: White
RAL Number (similar): 9001
Protection Class (IP): IP41

The PowerTag Link Display is the local display of the wireless PowerTag system. In combination with the Ethernet gateway (Modbus TCP) for wireless energy meters, you can monitor your energy measurements on-site in any electrical distribution system. It displays values captured by the wireless PowerTag energy meters, such as measured current, voltage, power factor, power, and energy, either as a front-mounted device in a 22 mm hole or as a rail-mounted device on a DIN rail.

The included power supply (1TE) can be mounted separately or in combination with the display (4TE) on a DIN rail. The PowerTag Link Display also reports alarms configured in the PowerTag system, helping to improve your operational efficiency and reduce the impact of downtime.

The power supply can be powered with 110 to 277 VAC and provides 24 VDC to the display. The dimensions are 72 mm in width, 95 mm in height, and 68 mm in depth, with a total weight of 137 g. The device complies with the EMC standards EN 300 328, EN 301489-1, and EN 301489-17.
