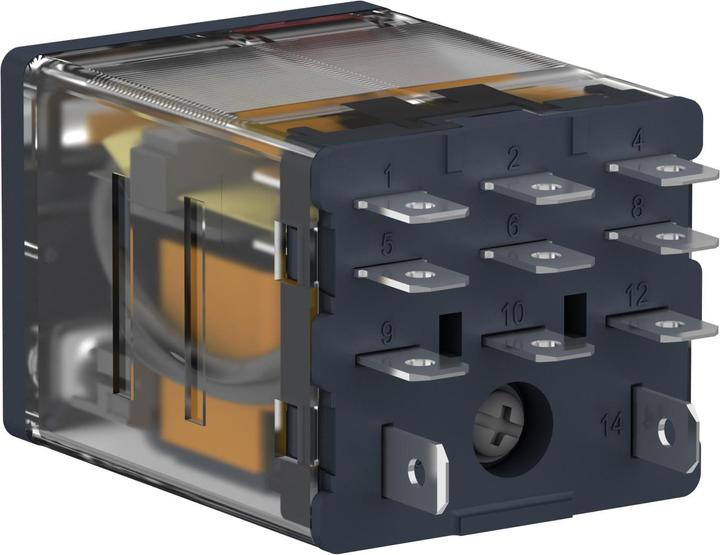

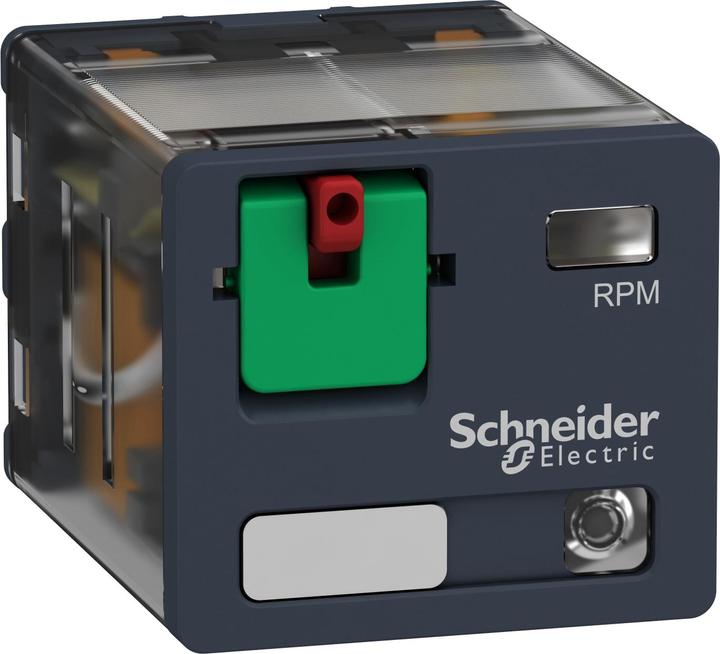

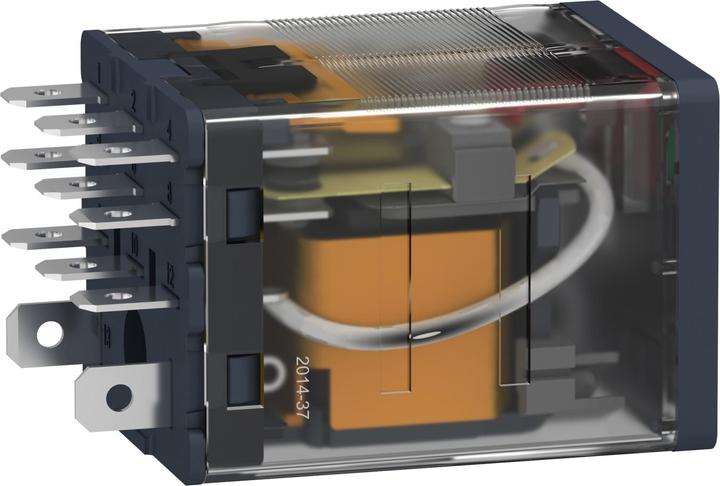

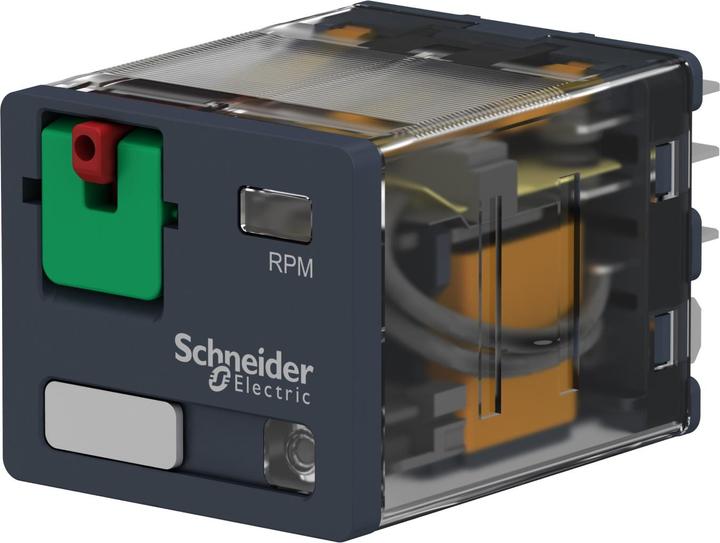

Schneider Electric Power Relay RPM, 3 W, 15 A, 120VAC, RPM32F7

Schneider Electric Load Plug-in Relay RPM32F7
Manufacturer: Schneider Electric
Designation: Load Plug-in Relay 120V AC
Type: RPM32F7
Electrical connection type: Plug-in connection
With detachable terminals: Yes
Rated current: 15 A
Rated control supply voltage Us at AC 50 Hz: 120 V
Rated control supply voltage Us at AC 60 Hz: 120 V
Voltage type for actuation: AC
Drive, polarity: Non-polarised
Switching behaviour of the drive: Monostable
Number of contacts as changeover contacts: 3
With positively driven contacts: Yes
Type of switching contact: Other
Complete device with base: No
With LED display: Yes
Material of contact coating: Other
Material of contact insert: Other
Material of contact: Other
Protection class (IP): IP40
Width: 31 mm
Height: 27 mm
Depth: 53 mm

Schneider Electric Load Relay RPM32F7: Further details
Zelio Relay. Power relay RPM as component. Number of contacts: 3, relay changer version, contact rating: 15 A each. Coil control voltage: 120 VAC. Mechanical position indicator: Yes, LED indicator: Yes. Test button for testing contacts: Yes, test lever for permanent change-over for testing purposes: Yes, operation without tools. Connections: Stable flat pins. Mounting in separate plug-in base.
