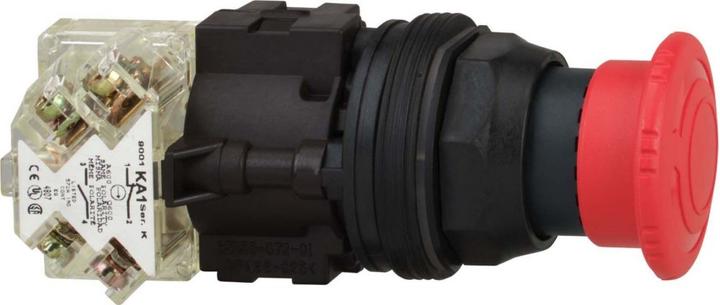

Schneider Electric Mushroom pushbutton

Schneider Electric Mushroom Push Button 9001KR16H2

Manufacturer: Schneider Electric
Designation: Mushroom Push Button
Type: 9001KR16H2
Release Type: Turn Release
Number of Contacts as Normally Open: 2
Number of Contacts as Normally Closed: 2
Protection Class (IP): IP66
Protection Class (NEMA): 4X, 13
Mounting Type: Panel Mount
With Illumination: No
Hole Diameter: 31 mm
Connection Type Auxiliary Circuit: Screw Terminal
Cap Diameter: 30 mm

Schneider Electric Mushroom Push Button 9001KR16H2: Additional Details
This Harmony 9001K emergency stop / shutdown 30mm mushroom head modular red button has 2 positions and operates with a locked rotation to release. It features a chrome-plated metal bezel and has 2 normally open and 2 normally closed contacts. It comes with a switching element and has screw terminals. This emergency stop / shutdown button, also known as EMS (Emergency Machine Stop) and EMO (Emergency Off), can be easily installed into a standard cutout with a diameter of 30 mm. Connection is made via simple screw terminal connections. With its clear color and distinctive 40mm mushroom shape, it is easily visible from a distance. Thanks to its IP66 protection class, it is shock-resistant, dust-tight, waterproof, and vibration-resistant, making it ideal for use in harsh environments.
