Schneider Electric KNX power supply REG-K/320 mA, light grey

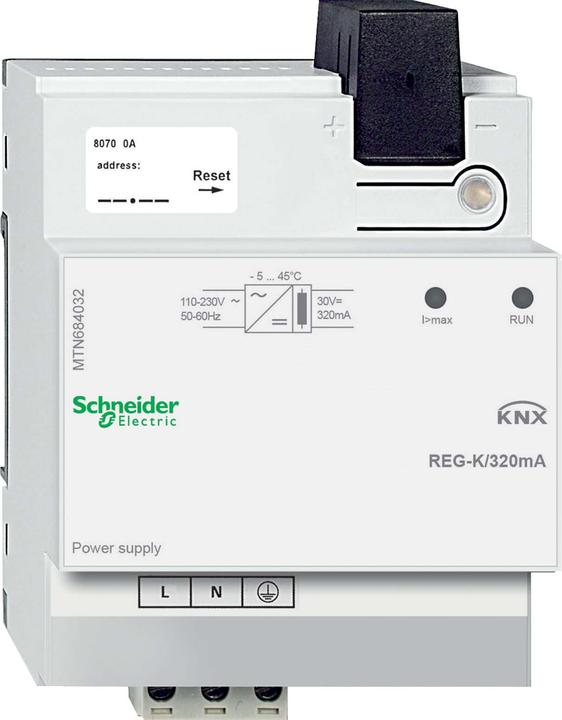

Schneider Electric KNX Power Supply MTN684032

Manufacturer: Schneider Electric
Designation: KNX Power Supply REG-K/320 mA
Type: MTN684032
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Division Units: 4
With LED Display: yes
Bus Voltage Bufferable: no
Number of Integrated Chokes: 1
Number of Supplyable Lines: 1
Max. Output Current: 320 mA
Secondary Voltage: 30 V

The Schneider Electric KNX Power Supply MTN684032 generates the bus voltage for a line with a maximum of 64 bus participants. It features an integrated choke to decouple the power supply from the bus, as well as a button for power interruption and resetting the bus participants connected to the line. Installation is done on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal; a data rail is not required.

Mains Voltage: AC 110 - 230 V, 50-60 Hz
Output Voltage: DC 30 V
Output Current: maximum 320 mA, short-circuit proof
Device Width: 4 TE, approximately 72 mm

Scope of Delivery: With bus connection terminal and wiring cover.
Color: light gray.
EAN: 3606485104935.
