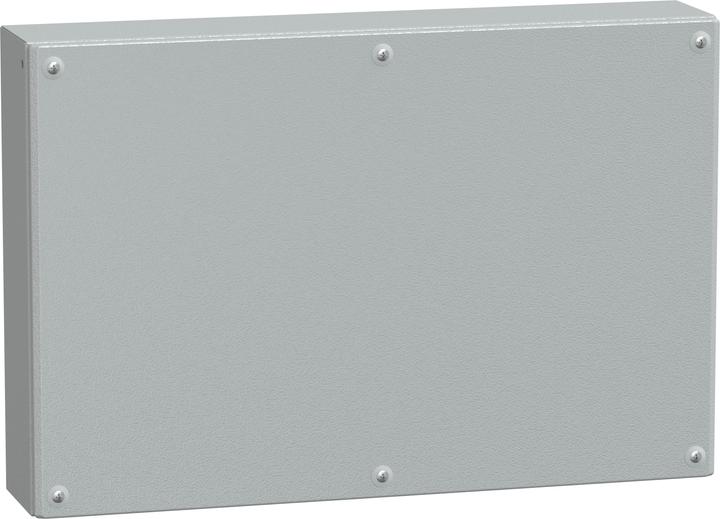

Schneider Electric IP66 Mild Steel enclosure 400x600x120mm

Height outside: 400 mm
Outer width: 600 mm
Outer depth: 120 mm
Outer dimensions: 400 x 600 x 120 mm
Housing material: Steel
Transparent door: No
IP protection class: IP66
Chassis plate: No
Shielding plate: No
Color: Gray
Series: Spacial SBM
Mounting kit: No
Indoor mounting type: Panel

Three profiles for width 800 mm, two for bus box (three screws for width greater than 400 mm), four for flat and access boxes (six screws for width greater than 400 mm). Spacial SBM industrial boxes. Schneider Electric's Spacial SBM steel enclosures are available in three versions and are designed for use in industrial machinery and building applications. The wall-mount enclosures have a one-piece rectangular body with seamed channels on the front and two or three drilled profiles for installing mounting plates and DIN rails on the back, with mounting holes that are 12.5 mm in diameter. The enclosure cover has a polyurethane gasket and two, three, four, or six threaded half-turn screws (version dependent). An M6 x 16 ground connection stud is welded into the cover to provide a potential connection terminal for the enclosure.

Features and benefits:

• 28 different sizes available, using accessories from the expansion box, even up to 42 sizes
• Depths of 80 mm and 120 mm available, with or without pre-installed FL21 cable entries
• IP66 protection, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas
• External mechanical impact resistance of up to IK10 (20 joules), allowing the wall box to withstand a 5 kg object dropped from a height of 40 cm
• Can be installed with a screwdriver
• Direct mounting from the back or using external mounting lugs
• Protected inside and out by gray (RAL 7035) painted polyester
• Attractive and robust design to protect against sensitive electronics

Typical applications:
Schneider's Spacial SBM series is suitable for use in underground garages, road, and railroad tunnels.
