Product details

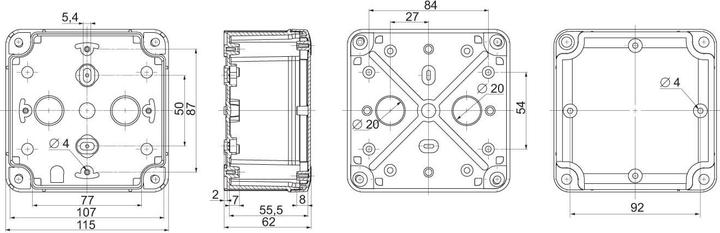

Height outside = 116 mm
Width outside = 116 mm
Outer depth = 62 mm
External dimensions = 116 x 116 x 62 mm
Enclosure material = ABS
Transparent door = No
IP protection class = IP66
Chassis plate = No
Door lock type = Screw
Screen connection plate = No
Color = Gray
Series = Thalassa TBS
Mounting kit = No
Internal mounting type = Mounting projections

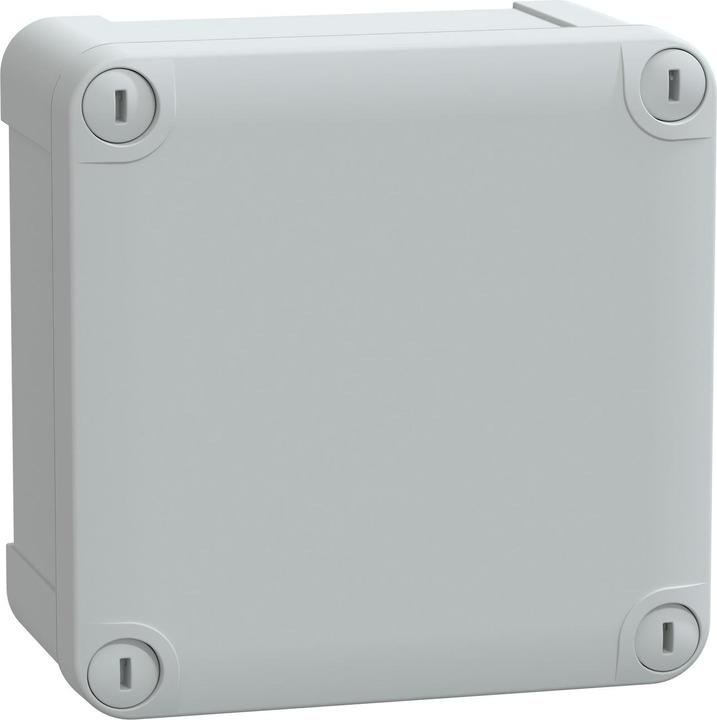

Thalassa TBS enclosure, Schneider Electric. The Thalassa TBS series enclosures from Schneider Electric are a range of wall-mounted, insulated, and industrial-grade multipurpose enclosures. The enclosures can be easily installed using a flat screwdriver. The ABS enclosure offers three options for wall mounting: directly through the holes in the base, through channels outside the encapsulated area, or by using clamps.
Features and benefits:
- IP66 protection class, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas
- External mechanical impact resistance of IK07 (2 Joules) – this means that the wall-mounted enclosure can withstand a 500 g object dropped from a height of 40 cm
- Mounting bolts on the lid

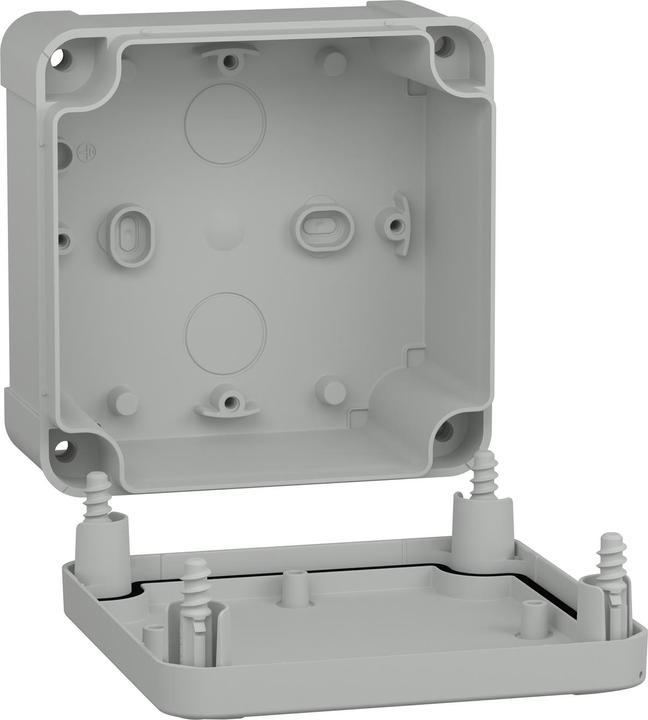

- Lid is secured with four captive plastic screws
- Hinges of lids adjustable to 20 mm and 40 mm
- Ambient temperature from –25 °C to +60 °C
- Halogen-free
- Self-extinguishing material provides additional safety regarding fire protection
- Only 1 tool required: a flat screwdriver.
Typical applications:
The Thalassa TBS series enclosures are suitable for protecting small components that require minimal intervention and maintenance.
Electrical engineering accessory type | Housing |
Item number | 9904385 |
Manufacturer | Schneider Electric |
Category | Electronics supplies + Casing |
Manufacturer no. | NSYTBS11116 |
Release date | 16.10.2018 |
Colour | Grey |
Compatible hardware | Various |
Electrical engineering accessory type | Housing |
Manufacturer Type | NSYTBS11116 |
Country of origin | Hungary |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 5 x |
Scope of delivery | Top |
Length | 62 mm |
Width | 116 mm |
Height | 116 mm |
Weight | 151 g |
Length | 12 cm |
Width | 11.80 cm |
Height | 6.20 cm |
Weight | 131 g |
