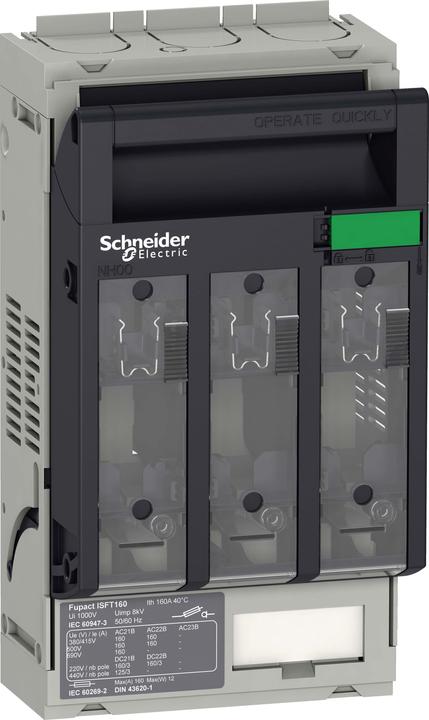

Schneider Electric Fuse switch-disconnector ISFT160 3P LV480801

Ratings
Delivered between Wed, 25.6. and Thu, 17.7.

Product details

Schneider Electric Terminal lugs LV480801 Manufacturer :Schneider Electric Designation :Terminal lugs ISFT160 3P Type :LV480801 Version as main switch :yes Version as safety switch :no Max. Rated operating voltage Ue at AC :690 V Rated continuous current Iu :160 A Conditional rated short-circuit current Iq :80 kA Rated short-time withstand current Icw :5 kA Suitable for fuse-links :NH00 Number of poles :3 With fuse monitoring :yes Connection type main circuit :screw connection Cable entry :other Equipped with plug connectors :yes Suitable for floor mounting :no Suitable for front mounting :yes Suitable for busbar mounting :no Design of the actuating element :other Position of the actuating element :front Motor drive optional :no Motor drive integrated :no Design as emergency stop device :no Protection class (IP), front :IP3X Schneider Electric terminal lugs LV480801: Further details Fuse switch-disconnector ISFT160 3P Connection M8 Mounting plate. , EAN: 3606481165633.

Key specifications

Maximum current
160 A
mounting style
Screws
Nominal voltage
800 V
Item number
33625443

General information

Manufacturer
Schneider Electric
Category
Energy monitors
Manufacturer no.
LV480801
Release date
17.5.2023

Colour

Colour
Grey

Energy meter property

mounting style
Screws
Maximum current
160 A
Nominal voltage
800 V

Safety

Protection type (IP code)
IPX3

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

30-day right of return
24 Months Warranty (Bring-in)
