Schneider Electric Front element

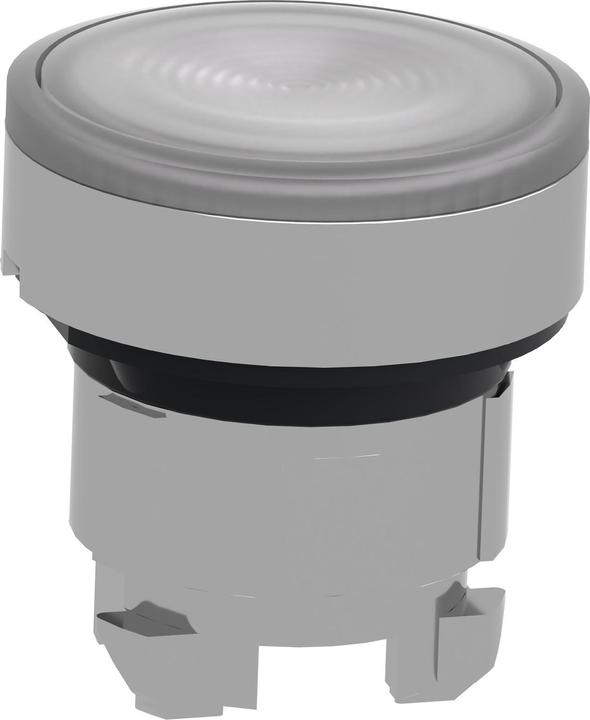

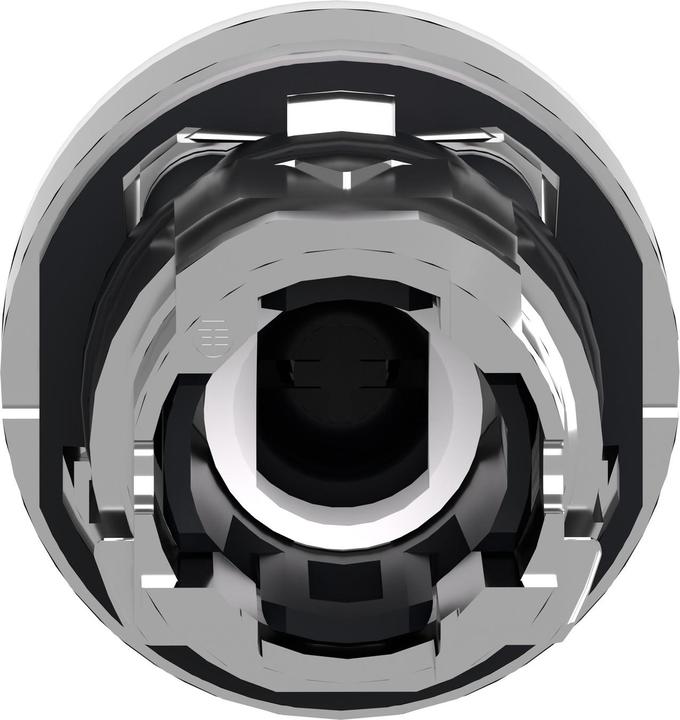

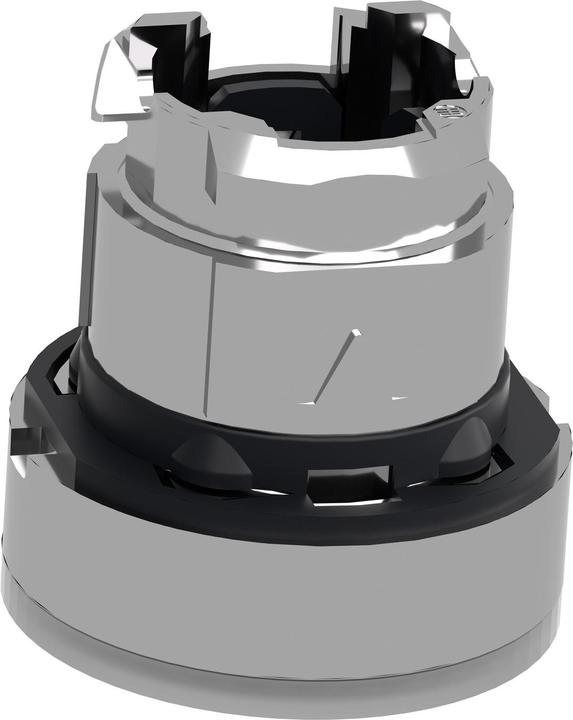

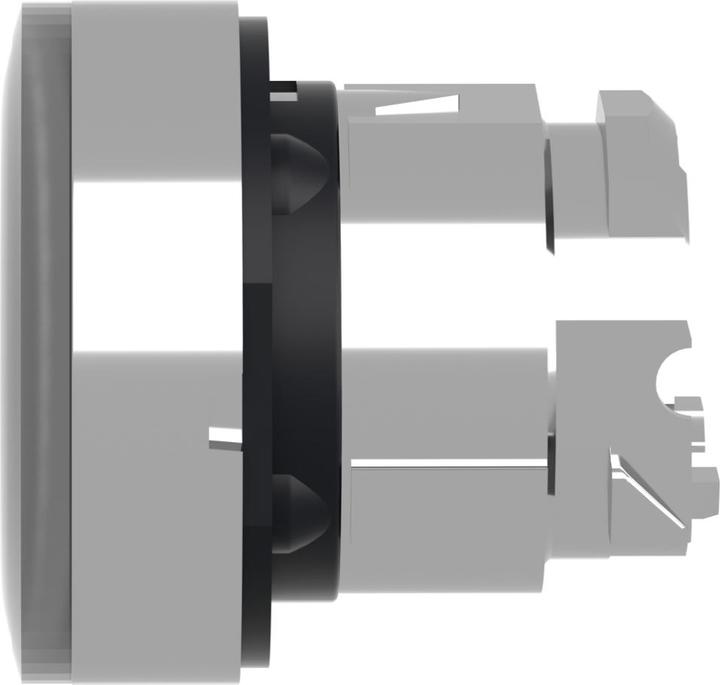

Schneider Electric Front Element Push Button ZB4BW313S

Manufacturer: Schneider Electric
Description: Front element push button D 22mm, white
Type: ZB4BW313S
Button color: white
Number of command points: 1
Lens shape: round
Hole diameter: 22.5 mm
Button shape: flat
Suitable for lighting: yes
With protective cover: no
Labeled: no
Latching switch function: no
Momentary: yes
With front ring: yes
Material of front ring: metal
Front ring color: chrome
Protection class (IP), front side: IP66
Protection class (NEMA), front side: other

Additional details:
Front element for Harmony ZB4 illuminated push buttons. White front, chrome-plated metal bezel, unlabeled.
Dimensions (WxHxD): 29x29x30 mm, mounting diameter: 22 mm, weight: 0.026 kg.
Mechanical lifespan: 10,000,000 cycles.
Head shape: round, standard.
With high vibration resistance and chemical resistance, ambient temperature: -40 to +70 degrees C.
The modular metal program with a 22mm installation size combines easy installation, efficiency, and modern design.
Certifications according to LROS (Lloyds Register of Shipping), RINA, UL listed, DNV, CSA, BV, GL.
Product standards according to EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C 4520, EN/IEC 60947-5-5, UL 508.
EAN: 3389110173871.
