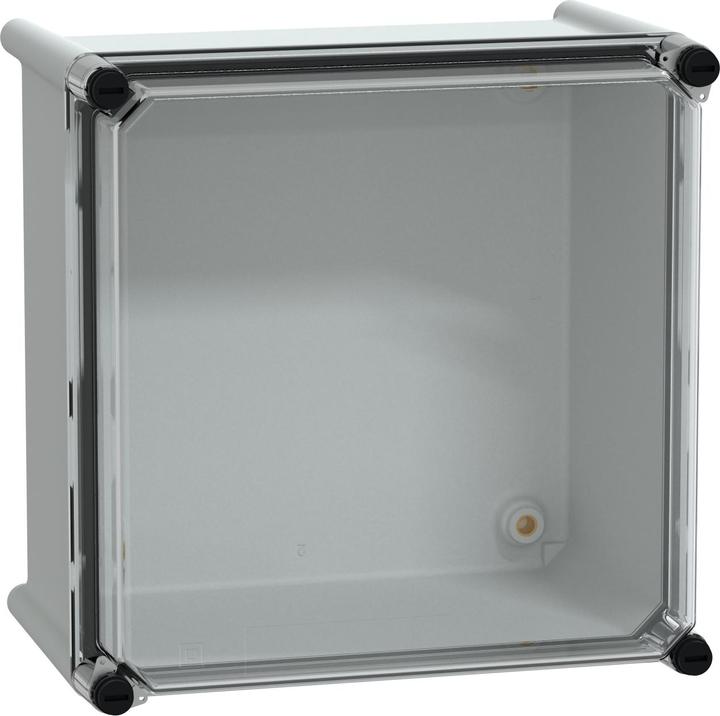

Schneider Electric Enclosure w/ Clear Cover 270x270x180mm

Enclosure material: fiberglass-reinforced polyester
External dimensions: 270 x 270 x 180 mm
External width: 270 mm
External height: 270 mm
IP protection class: IP65
Color: gray
Series: Thalassa
Shielded: no

The Thalassa PLS enclosure from Schneider Electric features a body made of fiberglass-reinforced polyester and a lid made of transparent or opaque polycarbonate. It has mounting projections that are already cast with M6 inserts. The lid is secured with 4, 6, or 8 screws, depending on the size. The Thalassa PLS can be connected horizontally and vertically to create enclosure groups for various functions.

Features and benefits:

• Full insulation for the realization of devices of insulation class II
• Protection class IP65 and IK09
• UL/CUL certification
• Suitable for indoor and outdoor use
• Resistant to harsh atmospheres
• Can be used in a wide temperature range
• Easy to process, with no corrosion caused during processing
• Halogen-free
• Long lifespan, permanently maintenance-free
• Locking system located outside the protected area
• A perforated one-piece chassis plate and four stainless steel mounting eyes are available separately.

Typical applications:

• Instruments for testing and measuring systems
• Medical tools
• Transport equipment
• Industrial controls
• Lighting applications

The IP protection class classifies the degree of protection against the ingress of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

Frequently asked questions:
Yes, the enclosures of the Euronord series have an IP65 protection class, meaning they are dust-tight and waterproof. Can the box be used outdoors?.
